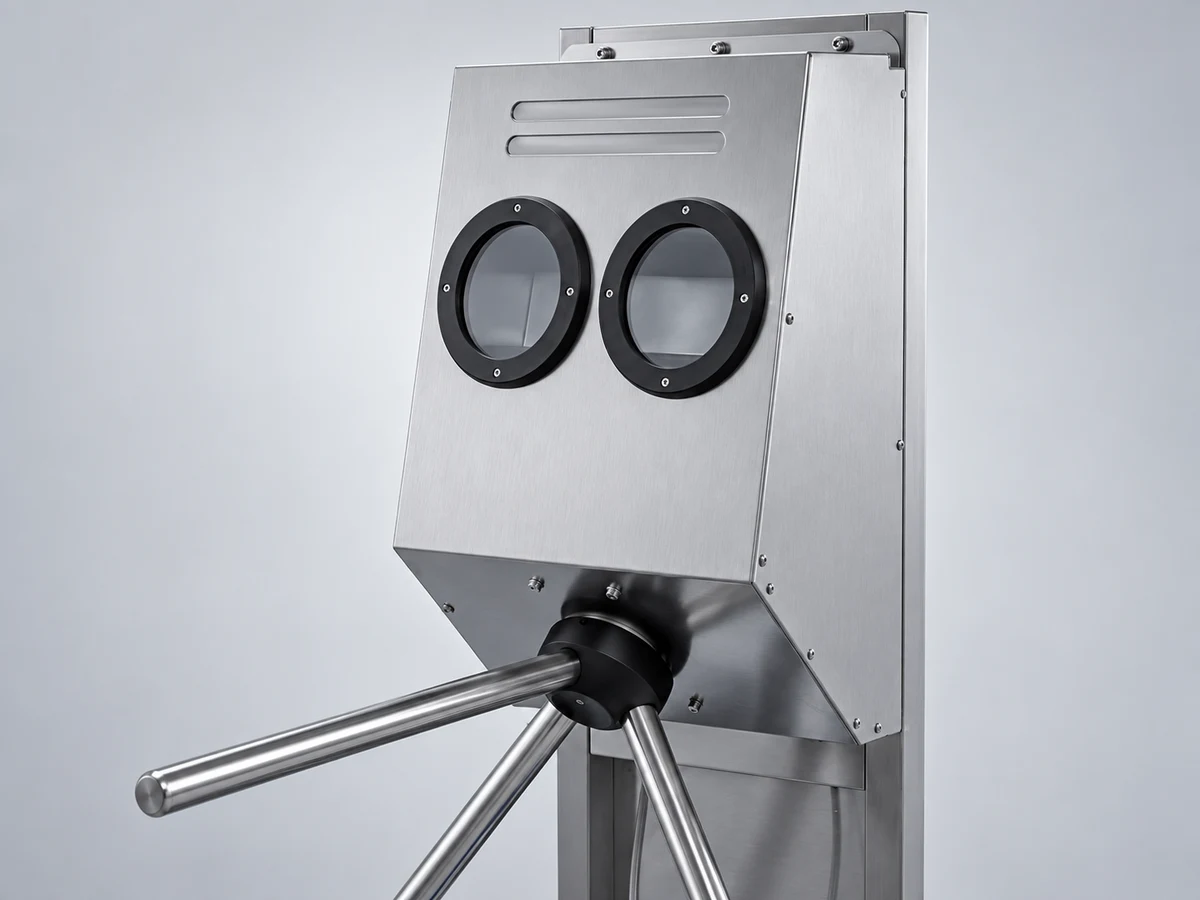

Dual-hand disinfection unit
Sensors in the two hand ports trigger a pump fed from a 5 L disinfectant canister for contactless spraying.
Places hand disinfection immediately before turnstile-controlled access. Hygiene Station
HGE Footbath Hand & Foot Disinfection Hygiene Station
Entry hygiene station combining a matted disinfectant footbath, dual-hand disinfection and a three-arm electric turnstile in the smallest 70 cm body.
Material
AISI 304
Size (L×W×H)
70 × 92 × 150 cm
Power supply
220–240V 50/60Hz
Hand disinfection
Dual-hand sensor-controlled, disinfectant spray pump and 5 L disinfectant canister
HACCP-compliant hygienic design Built to CE norms ISO 9001:2015 certified manufacturer 2-year manufacturer warranty
PERSONNEL HYGIENE IN ONE LINE
HGE: matted footbath and dual-hand disinfection
HGE is a footbath hygiene station that combines hand and sole disinfection with controlled access at personnel entrances that do not require a washbasin. A matted disinfectant footbath, a dual-hand sensor disinfection unit and a three-arm electric turnstile are arranged on one line in the smallest 70 cm body in the range; the turnstile does not release until both hands have been disinfected.
Manufactured entirely from AISI 304 stainless steel in our own workshop, HGE is ordered with the entry direction that matches the facility flow. Its 70 × 92 × 150 cm dimensions, 220–240 V supply and water connection are reviewed together with headcount, corridor width and disinfectant-refill access before quotation. Height-adjustable feet make it easy to level the unit on an uneven floor, and the 5 L disinfectant canister sits protected inside the body.
The 2-year manufacturer warranty, spare parts and service are provided directly from our workshop in Pendik. The technical sheet PDF can be downloaded from this page, and units ship packaged across Türkiye and to export markets.
INTEGRATED FUNCTIONS
Functions built into the HGE hygiene station
Each module addresses a distinct personnel-entry hygiene need. Passage logic and facility integration are confirmed before ordering.

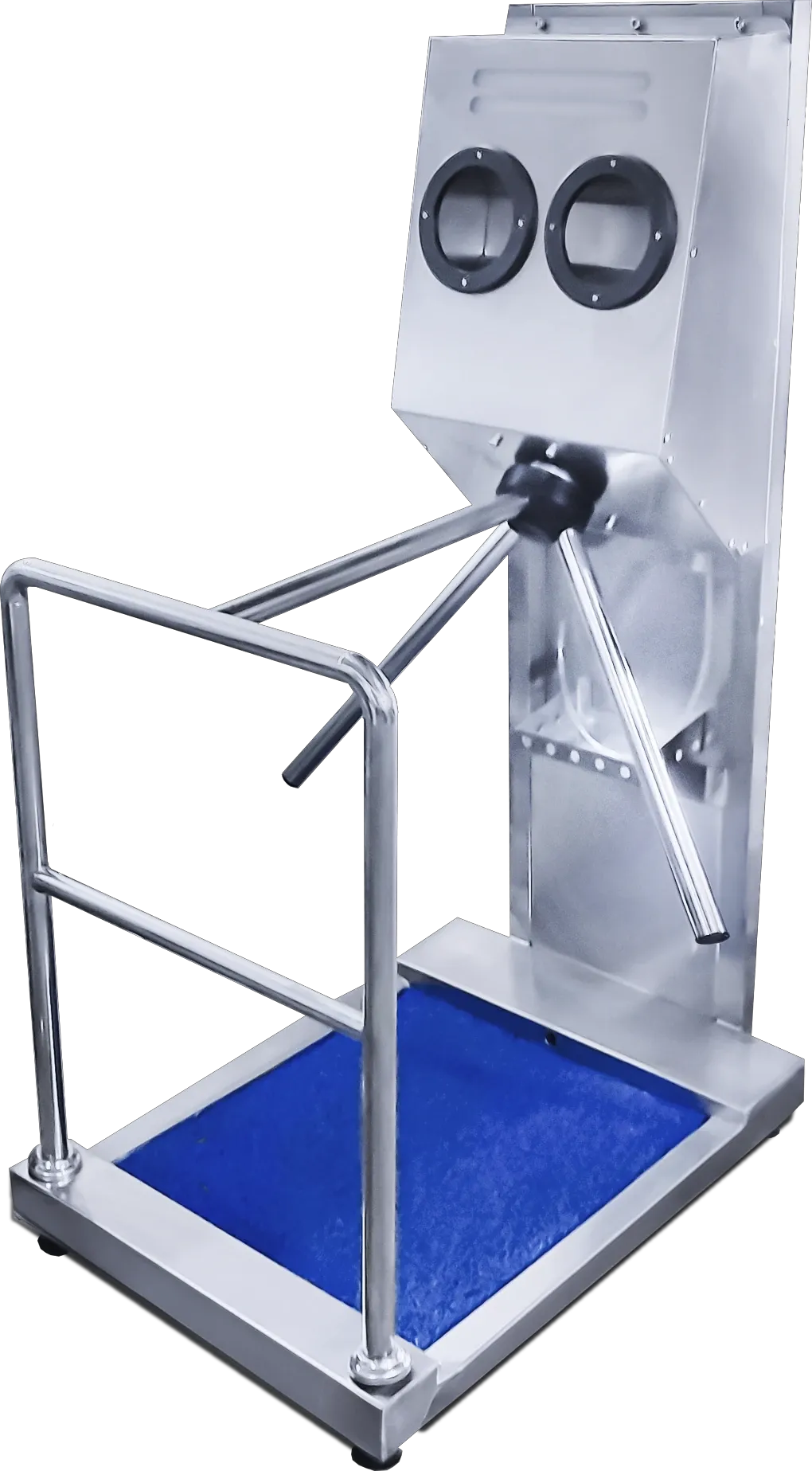

HGEINTEGRATED HYGIENE LINE
Three-arm electric turnstile
The electric tripod turnstile releases passage once the hand-disinfection step is complete.
Ensures the hygiene steps are completed before entry.
Stainless safety handrail
The round-section stainless handrail gives two support levels while crossing the footbath area.
Supports stable, guided movement on the wet surface.

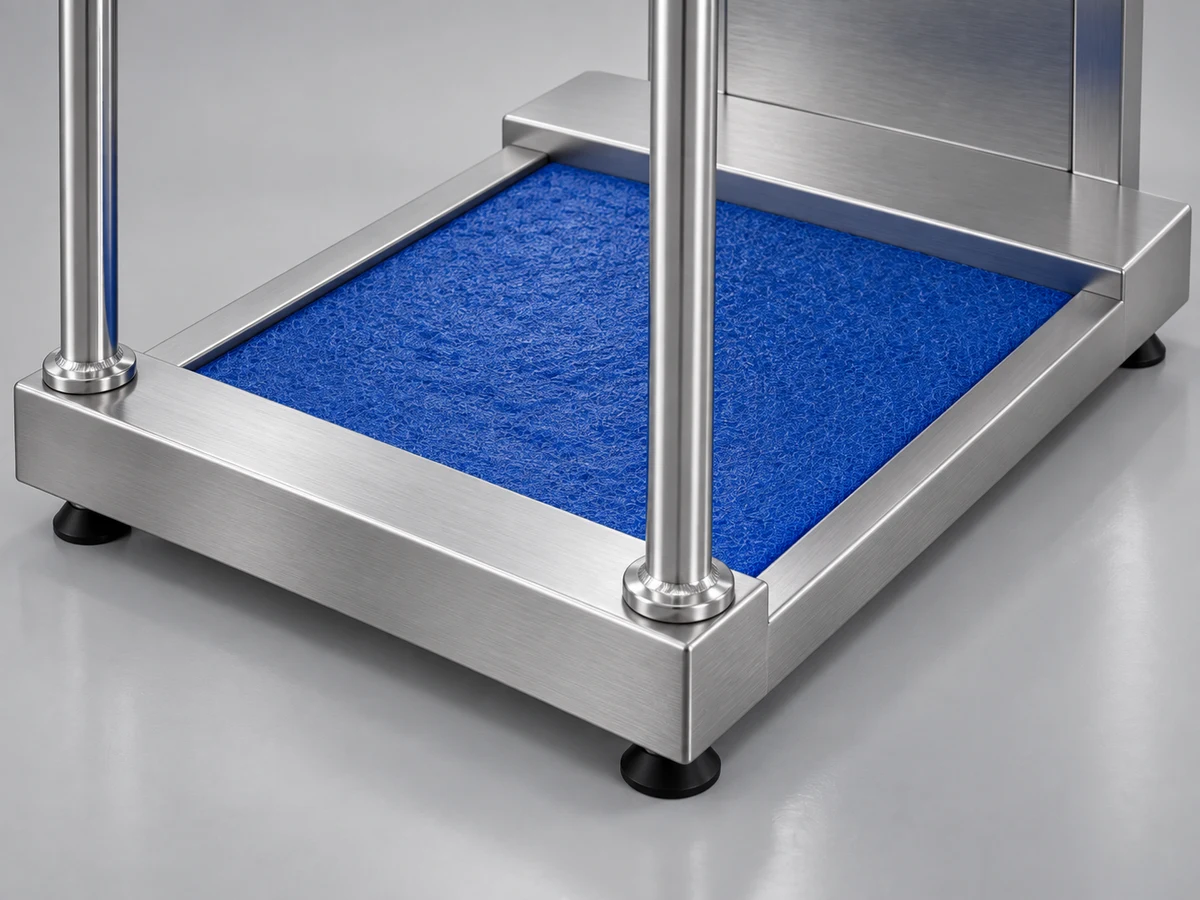

Matted disinfectant footbath
The matted stainless footbath brings footwear and boot soles into contact with disinfectant as the user walks across.
Makes sole disinfection part of the passage without an additional cycle time.Smallest footbath body: 70 cm
Footbath, disinfection and turnstile fit narrow entrances that need no washbasin in a 70 × 92 cm footprint.
Hand and sole disinfection together
Dual-hand disinfection releases the turnstile; the matted footbath completes sole disinfection in the same passage.
Entirely AISI 304 stainless steel
The HGE body and components are made from AISI 304 stainless steel; washable, corrosion- and chemical-resistant.
Built and serviced in our own workshop
Design, manufacturing, spare parts and service come from our workshop in Pendik; every unit carries a 2-year manufacturer warranty.
Design and safety features
-
Hygienic design to HACCP principles Washable seamless surfaces, a body without dead spaces and an enforced step sequence; the personnel entrance can be documented as a control point in the HACCP plan.
-
Free passage on power failure When the power fails the turnstile arms are released and the evacuation direction is never blocked; locked behaviour is available on request.
-
Modular body, easy to relocate The footbath, turnstile modules separate so the unit passes through a standard 80 cm doorway and can be relocated within the facility.
-
Easy refilling and cleaning Disinfectant and soap reservoirs are replaced behind a locked panel; washable surfaces keep daily cleaning to minutes.
-
Access-control and time-attendance integration A dry-contact input connects card, fingerprint or face-recognition readers and time-attendance systems to the turnstile, so each completed hygiene pass is logged.
TECHNICAL INFORMATION
Technical specifications and standard equipment
| Material | AISI 304 |
|---|---|
| Size (L×W×H) | 70 × 92 × 150 cm |
| Approx. weight | Approx. 85 kg |
| Passage width | Clear passage width approx. 60 cm |
| Mounting | Adjustable feet |
| Power supply | 220–240V 50/60Hz |
|---|---|
| Total connected load | Max. 0.1 kW (disinfectant pump, sensors and turnstile lock) |
| Ambient temperature | +5 to +40 °C (protect from frost) |
| Water | No mains water connection required; the disinfectant reservoir and matted footbath are filled manually |
| Hand disinfection | Dual-hand sensor-controlled, disinfectant spray pump and 5 L disinfectant canister |
|---|---|
| Sole disinfection | Matted disinfectant footbath |
| Turnstile | Three-arm electric |
|---|---|
| Passage time | Turnstile release cycle adjustable between 8 and 15 s |
| Passage capacity | Approx. 4–6 people/min (hand disinfection + turnstile cycle); confirmed by measurement at the facility. |
| Protection class | Control cabinet and electrical components rated IP65 |
| Power failure | Turnstile arms are released (fail-safe); a locked (fail-secure) configuration is available on request |
| Access-control integration | Dry-contact input; optional integration with card readers, fingerprint or face recognition and time-attendance (PDKS) systems |
| Disinfectant consumption | Approx. 3–5 ml per pass; a 5 L reservoir covers approx. 1,000–1,500 passes |
| Category | Hygiene Stations |
| Product code | HGE |
STANDARDS AND AUDITS
Compliance & Documentation
Umran hygiene stations form the standard personnel-entrance control point required in HACCP, BRCGS, IFS and ISO 22000 certification. Standard names and logos belong to their respective bodies.
-
Designed in line with ISO, CE and HACCP requirements
Hygienic design to HACCP principles: The product design takes the applicable ISO, CE and HACCP requirements into account.
Read the guide -
Warranty certificate
The warranty certificate is recorded in our system together with the product documentation.
-
User manual supplied
The user manual is included in the delivery documentation.
-
Personnel-hygiene control point in BRCGS, IFS and ISO 22000 audits
Meets the personnel-hygiene requirements of BRCGS Food Safety Issue 9 (4.8.4, 7.2.2, 8.4.1), IFS Food v8 (§3.2) and ISO 22000:2018 / ISO 22002-1:2025 (clause 13) on one line; the entrance becomes a documented control point in the audit.
Read the guide

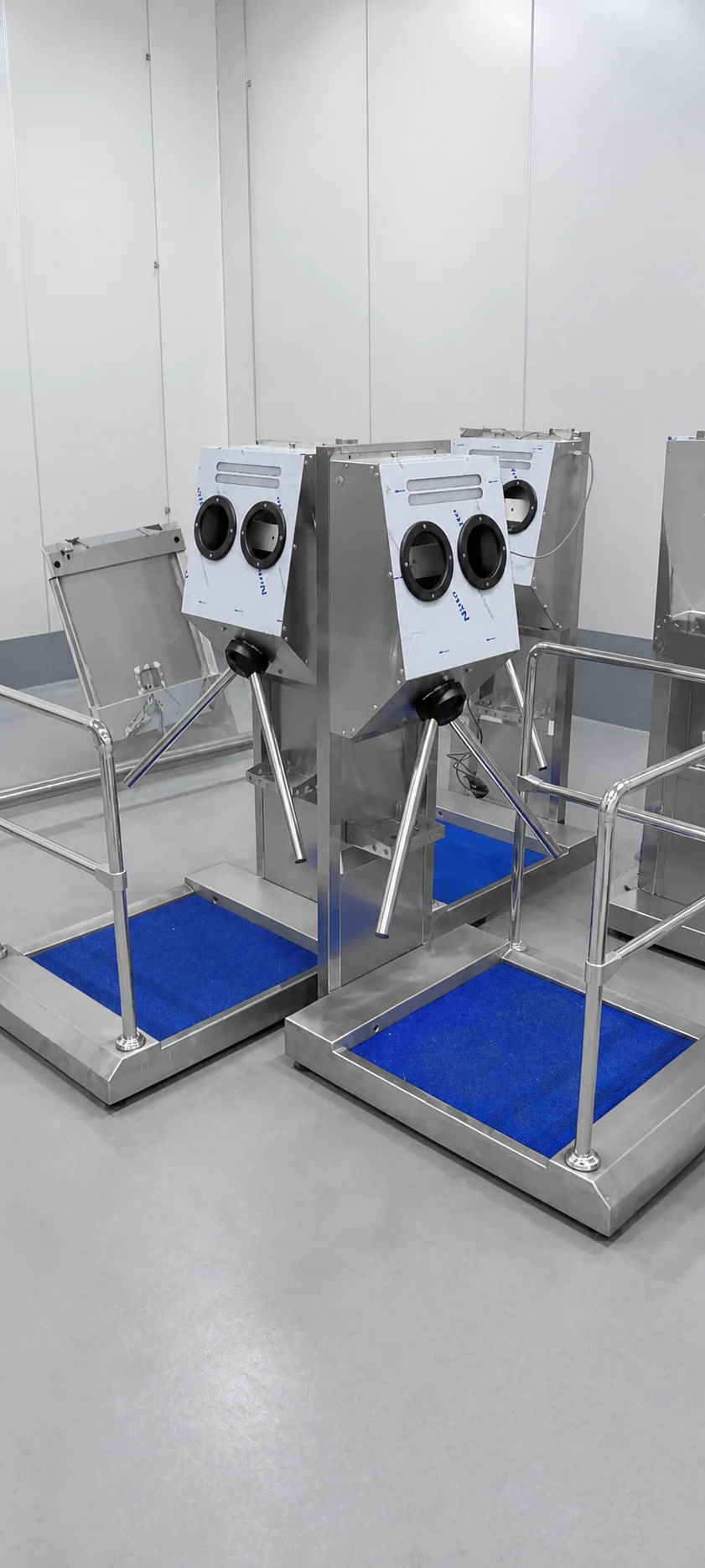

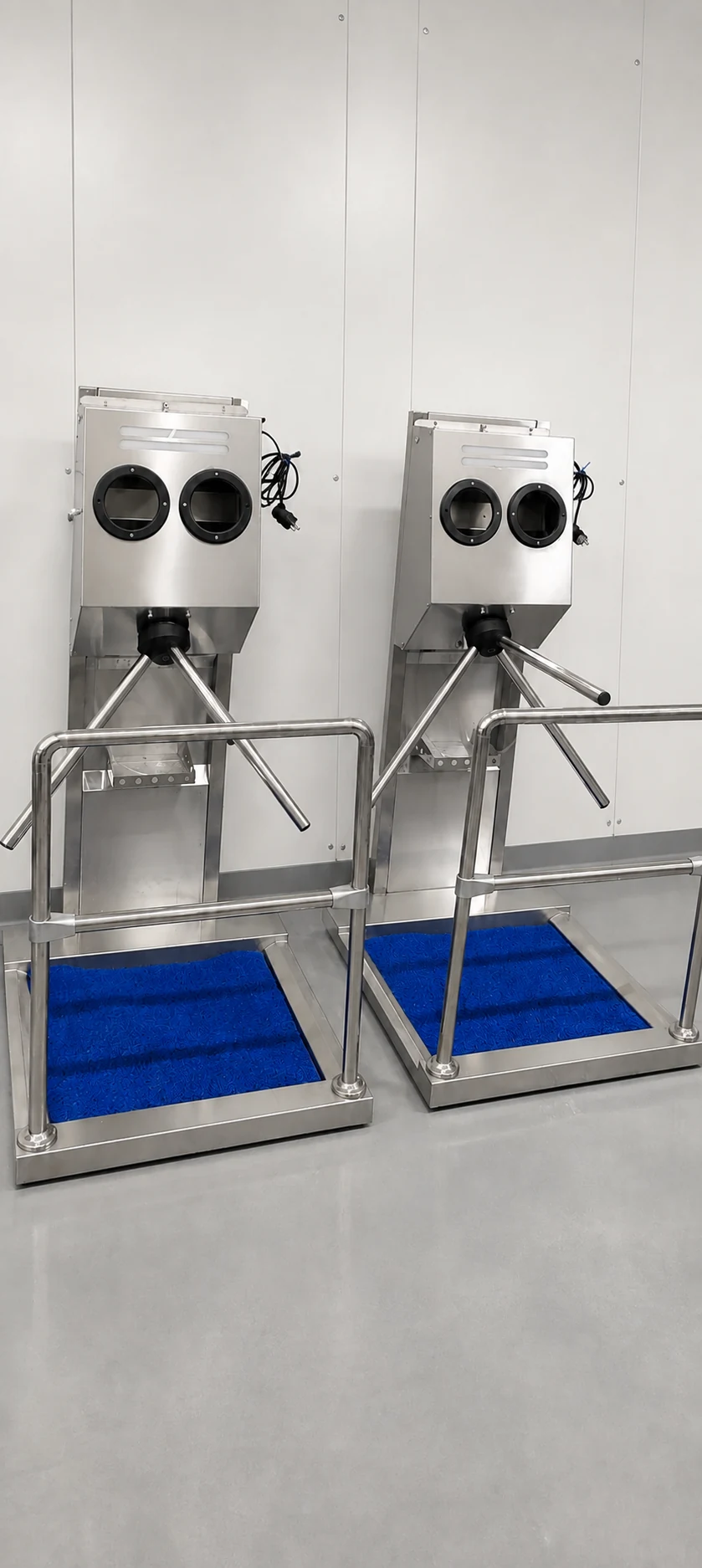

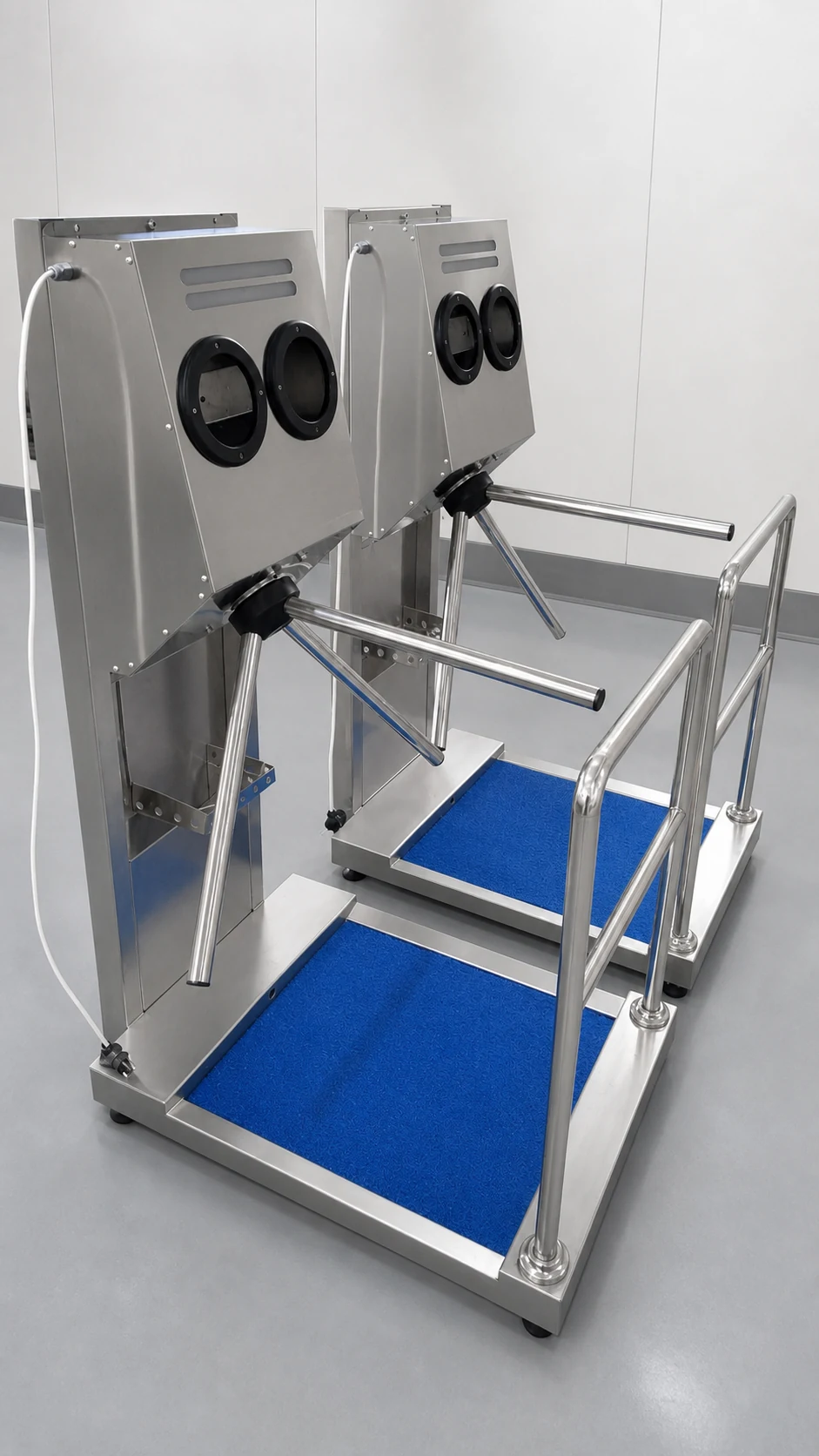

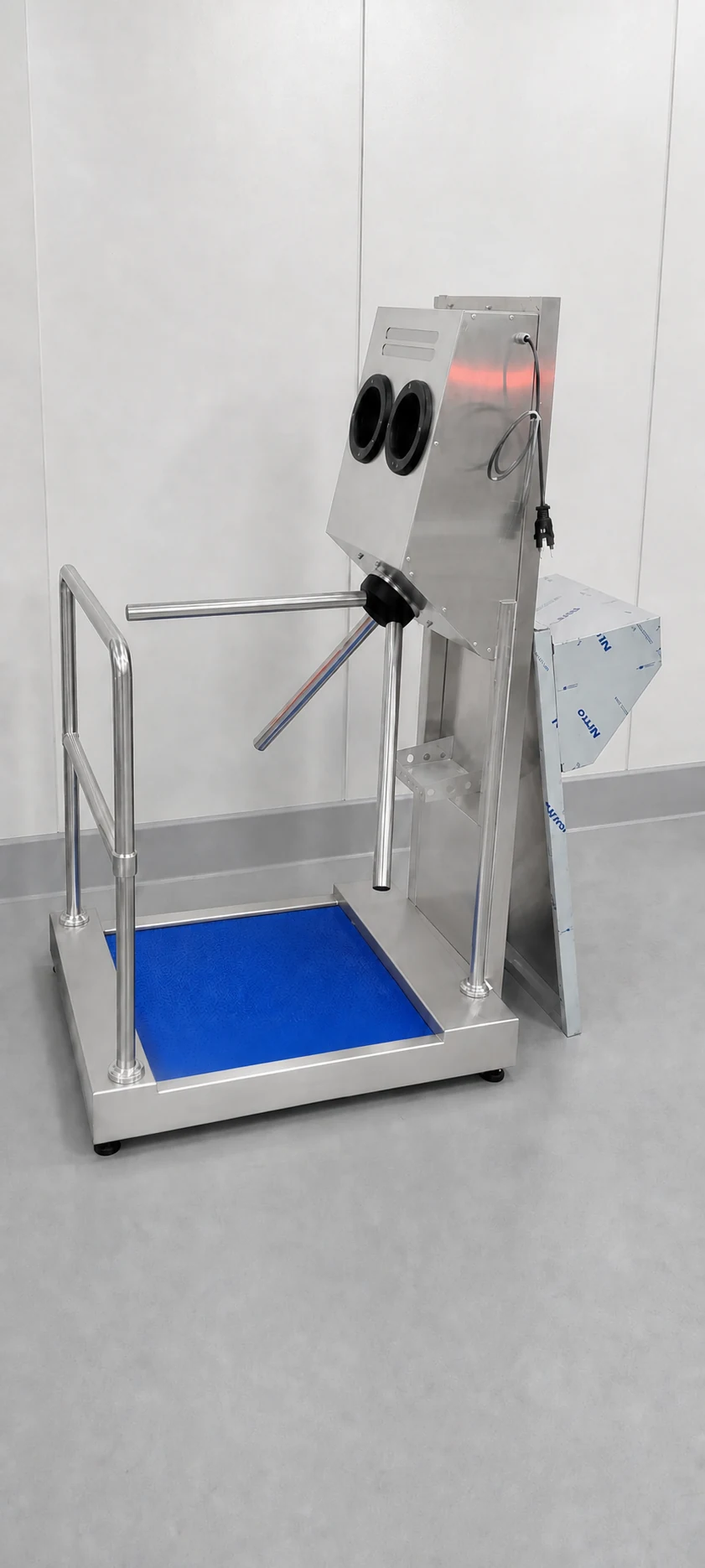

Product photographs
Explore the equipment and its different configurations in detail.
1–3 / 4
WHY UMRAN MAKINE
Why Umran Makine for HGE?
The same team designs, manufactures and services the product.
- Manufacturing under our own brand for over 13 years
Since 2012 design, welding, assembly and service have taken place at our own company, today in Pendik, İstanbul. No intermediaries: the team that designs the product also builds and services it.
- 180+ corporate references
Our equipment is installed in food, dairy, meat and poultry, confectionery, packaging, agriculture, public-sector and industrial-kitchen facilities. See the reference list. See our references
- Entirely AISI 304 stainless steel
Body and components are made from washable, corrosion- and chemical-resistant AISI 304 stainless steel; 4 product families and 29 models share the same material discipline.
- Facility-specific configuration
Passage direction follows the facility flow; on models with a control system, cycle times and access modes (entry only, closed return, bidirectional) are adjustable.
- 2-year manufacturer warranty
Every unit ships with its warranty certificate and user manual, manufactured under an ISO 9001:2015 certified quality management system.
- Spare parts, service and export
Spare parts and service come from our own workshop; packaged shipping to all of Türkiye and to Europe, the Balkans, the Middle East, the Gulf, the Caucasus, Central Asia and North Africa. See our references
APPLICATIONS
For hygiene-critical personnel entrances
Model suitability is determined by considering soil load, shift density, available space and the facility hygiene procedure together.
Pharmaceutical and cosmetics production
For cleanroom and production entrances that need touchless hand disinfection, sole disinfection and controlled access.
Explore the applicationFruit and vegetable processing
For fast, auditable hand and sole disinfection at the entrance to fresh-produce lines.
Explore the applicationCatering and industrial kitchens
A footbath hygiene step that fits a narrow space for heavy staff circulation at kitchen entrances.
Explore the applicationFood processing and packaging
For hand and sole disinfection at secondary production entrances that do not require a washbasin.
Explore the applicationCONFIGURATION AND INSTALLATION
Define the facility flow before ordering
The correct layout depends on more than product dimensions. Personnel flow, approach space and facility connections are reviewed together.
Read the hygiene station maintenance guidePassage direction
HGE is ordered with the entry direction that matches the facility flow; the turnstile arm and footbath approach are positioned accordingly.
Personnel flow
Shift headcount and entrance peaks are included in the layout review before quotation.
Placement and footprint
The 70 × 92 cm footprint, entry and exit approach, and disinfectant-refill access are planned together.
Utility connections
The position of the 220–240 V 50/60 Hz supply and the water connection is confirmed before ordering.
MAINTENANCE AND CONSUMABLES
Years of the same performance with routine care
The stainless body is wiped with a chloride-free cleaner, reservoirs are refilled before they run empty, and the sensors and turnstile mechanism are checked periodically. Frequency increases with the soil load.
Maintenance and cleaning guide| Daily | Wiping and rinsing the stainless surfaces, disinfectant and soap reservoir level check, renewing the footbath disinfectant |
|---|---|
| Weekly | Sensor and photocell cleaning, nozzle flow check, turnstile movement test |
| Monthly | Dosing system flush, connection and screw tightness, cable and plug check, deep surface cleaning |
| 3–6 months | General check of the lock mechanism and electronics, manufacturer service if needed |
TECHNICAL FAQ
Frequently asked questions about HGE
Technical content: Efkan Turan Yağcı
, Founder · Owner
Last technical review:
What is the HGE hygiene station? +
HGE is a footbath hygiene station designed for entrances that do not require a washbasin; it combines a matted disinfectant footbath, a dual-hand sensor disinfection unit and a three-arm electric turnstile in a single 70 cm AISI 304 body.
What is included with HGE? +
The standard delivery covers the matted disinfectant footbath, a dual-tank, dual-sensor hand disinfectant dispenser with a 5 L canister, a three-arm electric turnstile and height-adjustable feet.
Which facility entrances is HGE suitable for? +
It is considered for entrances in pharmaceutical and cosmetics, fruit and vegetable, catering and food-processing facilities where hand washing takes place elsewhere and hand and sole disinfection with controlled access are required. Final suitability depends on personnel flow, space and the facility procedure.
What utilities does HGE installation require? +
The unit requires a 220–240 V 50/60 Hz power supply and a water connection. Placement, connection points and disinfectant-refill access for the 70 × 92 × 150 cm footprint are confirmed in the pre-order technical review.
What is the difference between HGE, HGE-S and DSE? +
HGE-S adds a 2+1 PPE dispenser to the HGE functions in a 95 cm body; DSE offers only dual-hand disinfection and a turnstile without a footbath. Choose HGE when sole disinfection is required, and HGE-S when PPE dispensing is also needed.
What are the HGE warranty, delivery and service terms? +
HGE is delivered with a 2-year manufacturer warranty, the warranty certificate and the user manual. Spare parts and service come from our workshop in Pendik, with packaged shipping across Türkiye and to export markets.
What happens to the HGE turnstile if the power fails? +
When the power fails the turnstile arms are released (fail-safe) and the evacuation direction is never blocked. If the facility procedure requires locked behaviour, a fail-secure configuration is prepared on request.
Can HGE be integrated with card readers or a time-attendance system? +
Yes. The dry-contact input on the control system integrates with card readers, fingerprint or face recognition and time-attendance (PDKS) systems, so each completed hygiene pass is logged. The integration is planned during the pre-order technical review.
Which hand disinfectant should be used with HGE? +
Liquid (non-gel) alcohol-based or quaternary-ammonium industrial hand disinfectants are suitable for the spray nozzles. Gel products can block the nozzles. The contact time on the product label is taken into account when setting the passage cycle.
