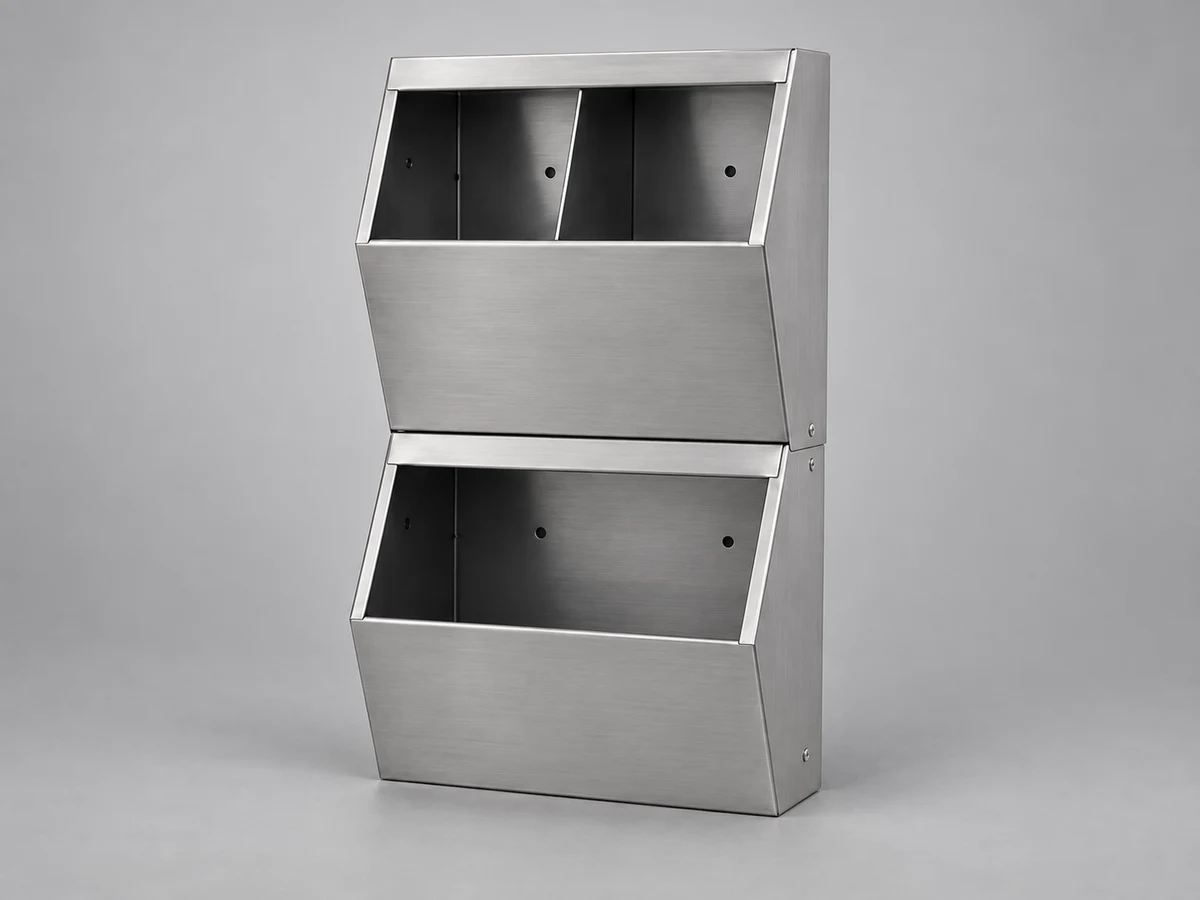

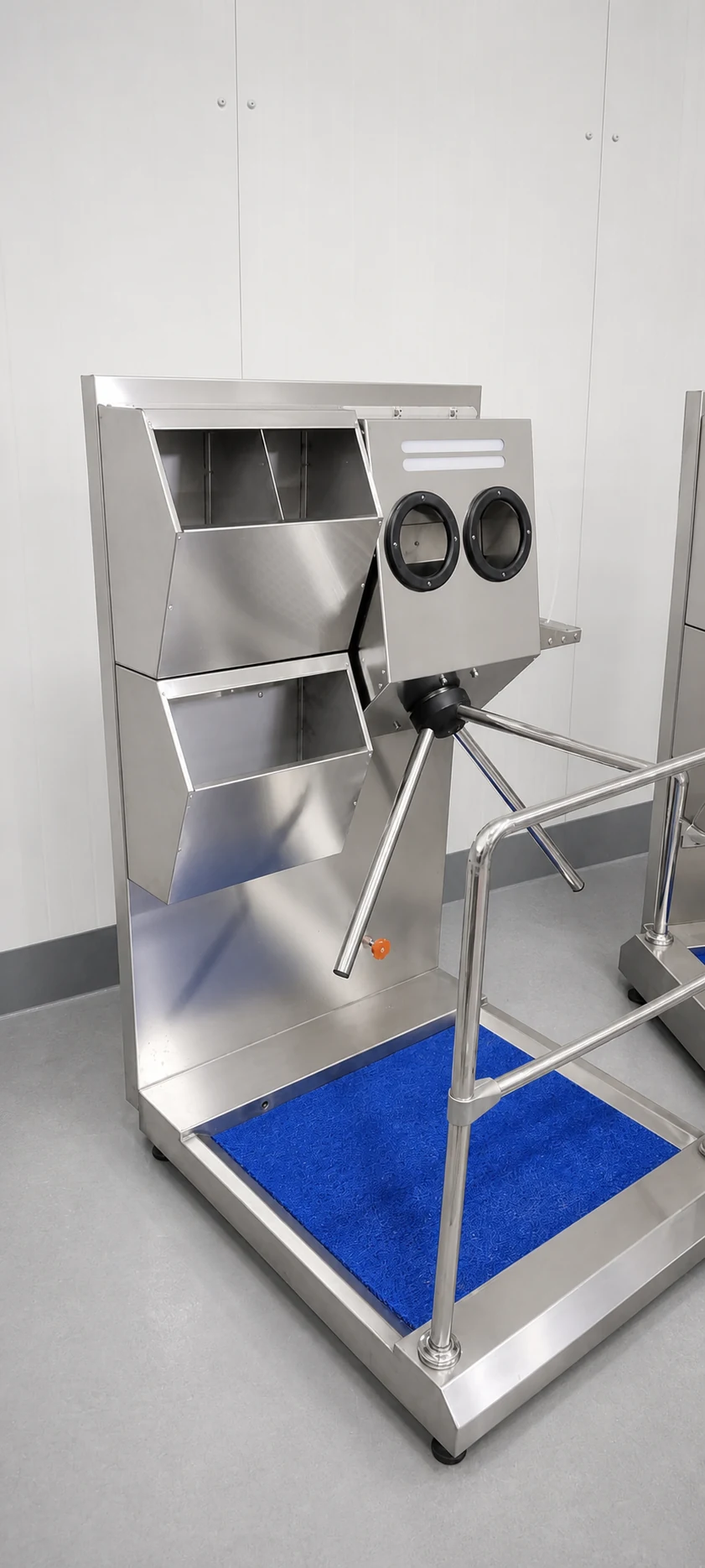

2+1 PPE dispenser
Two separate upper compartments and one wide lower compartment organize hairnets, masks, gloves and similar protective equipment at the entrance.
Keeps PPE preparation at one point at the beginning of the hygiene passage. Hygiene Station

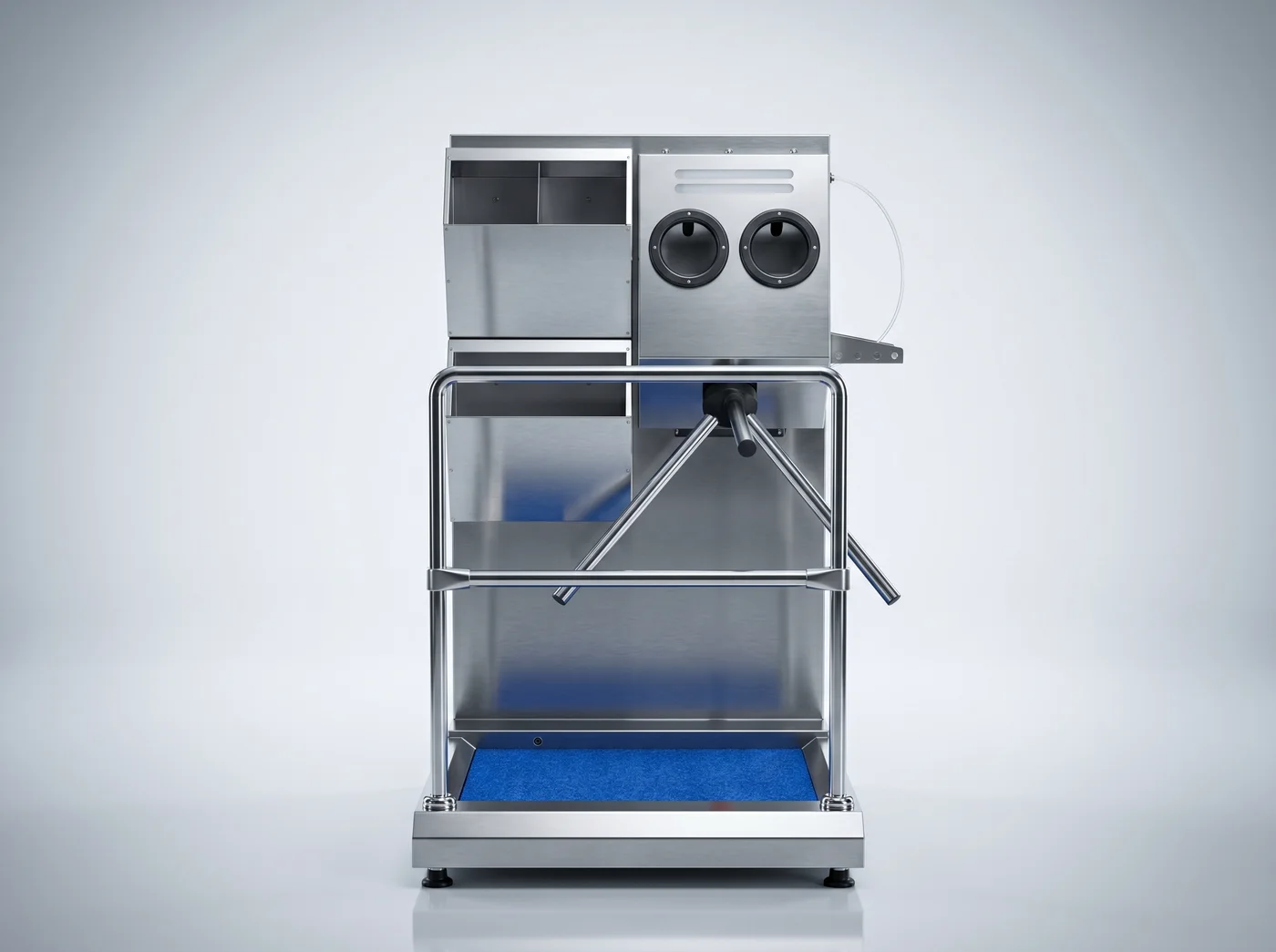

HGE-S Hygiene Station with PPE Dispenser
Compact 95 cm hygiene station combining PPE dispensing, dual-hand disinfection, a matted disinfectant footbath and turnstile-controlled access.
Material
Entirely manufactured from AISI 304 stainless steel
Size (L×W×H)
95 × 95 × 150 cm
Power supply
220–240V 50/60Hz
Hand disinfection
Dual-hand sensor-controlled, disinfectant spray pump and 5 L disinfectant canister
HACCP-compliant hygienic design Built to CE norms ISO 9001:2015 certified manufacturer 2-year manufacturer warranty
PERSONNEL HYGIENE IN ONE LINE
HGE-S: PPE dispensing and hand-and-footwear disinfection
HGE-S brings PPE preparation, hand disinfection and sole disinfection together at a controlled personnel entrance. Two separate upper PPE compartments and one wide lower compartment operate alongside dual-hand sensor disinfection, a matted disinfectant footbath and a three-arm electric turnstile.
Entirely manufactured from AISI 304 stainless steel, the 95 × 95 × 150 cm body is designed for compact entrance points that do not require a washbasin. Corridor width, passage direction, electrical and water connections, and disinfectant-refill access are reviewed before ordering.
HGE-S is manufactured at our company in Pendik, İstanbul, under the manufacturing discipline we have kept under our own brand since 2012. The 2-year manufacturer warranty, spare parts and service are provided directly by Umran Makine. The technical sheet PDF can be downloaded from this page, and units ship packaged across Türkiye and to export markets.
INTEGRATED FUNCTIONS

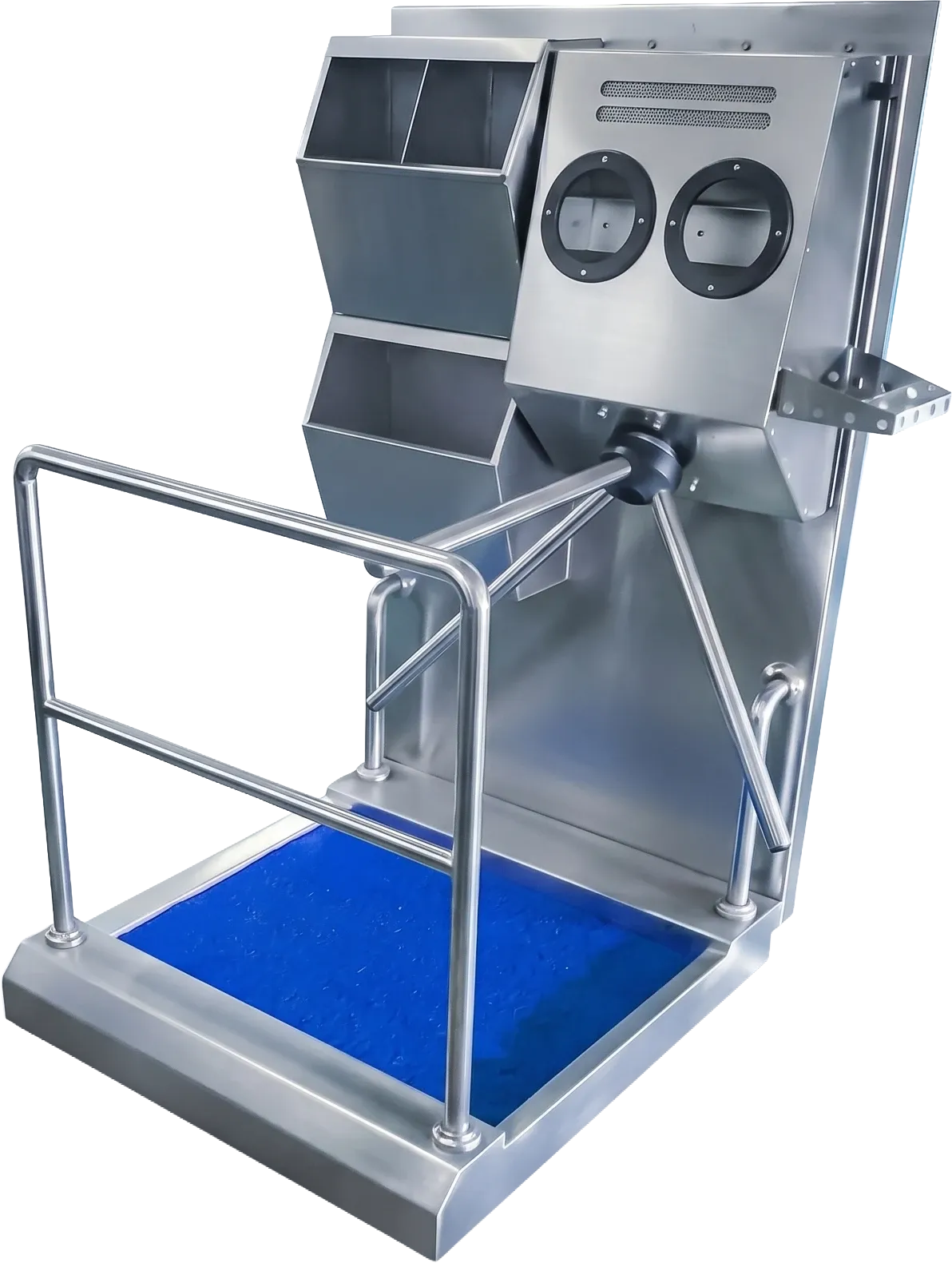

Functions built into the HGE-S hygiene station
Each module addresses a distinct personnel-entry hygiene need. Passage logic and facility integration are confirmed before ordering.
HGE-SINTEGRATED HYGIENE LINE

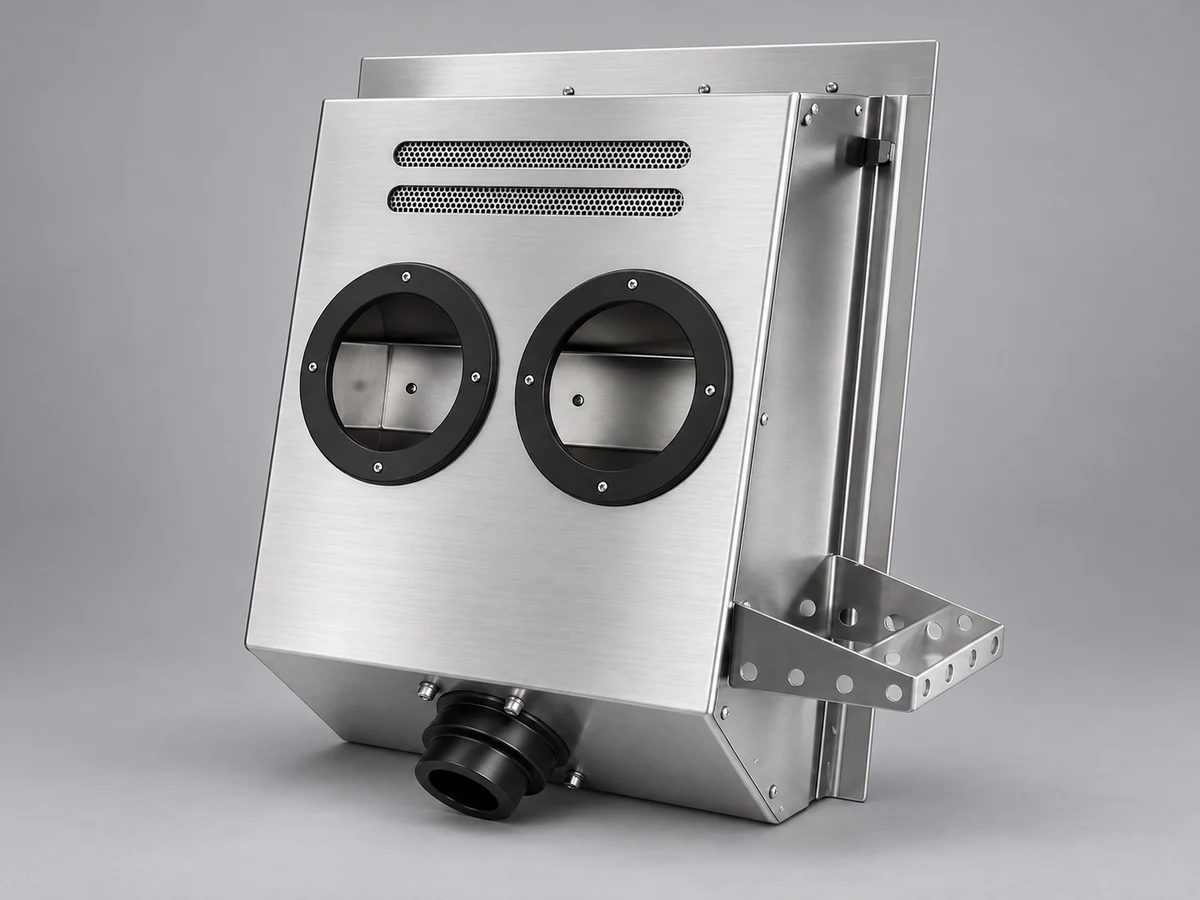

Dual-hand sensor disinfection
Sensors in the two hand ports control disinfectant spray from the pump supplied by a 5 L canister.
Links simultaneous disinfection of both hands to the controlled passage sequence.

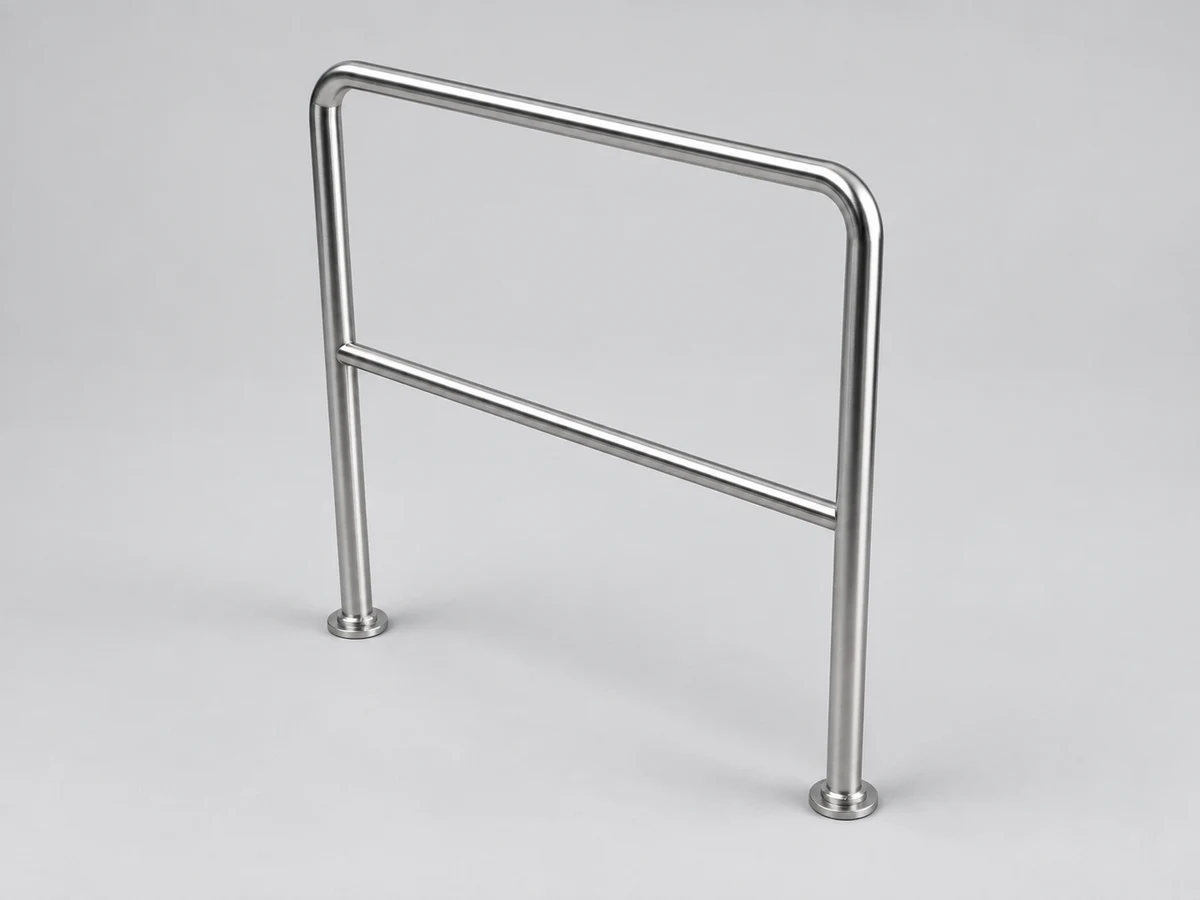

Stainless safety handrail
The round stainless steel handrail provides two support levels while the user crosses the matted footbath.
Supports stable, guided movement across the wet passage surface.
Three-arm electric turnstile
The electric tripod turnstile controls personnel access after the hand-disinfection step is completed.
Helps tie the hygiene step to the access sequence so it is not bypassed.

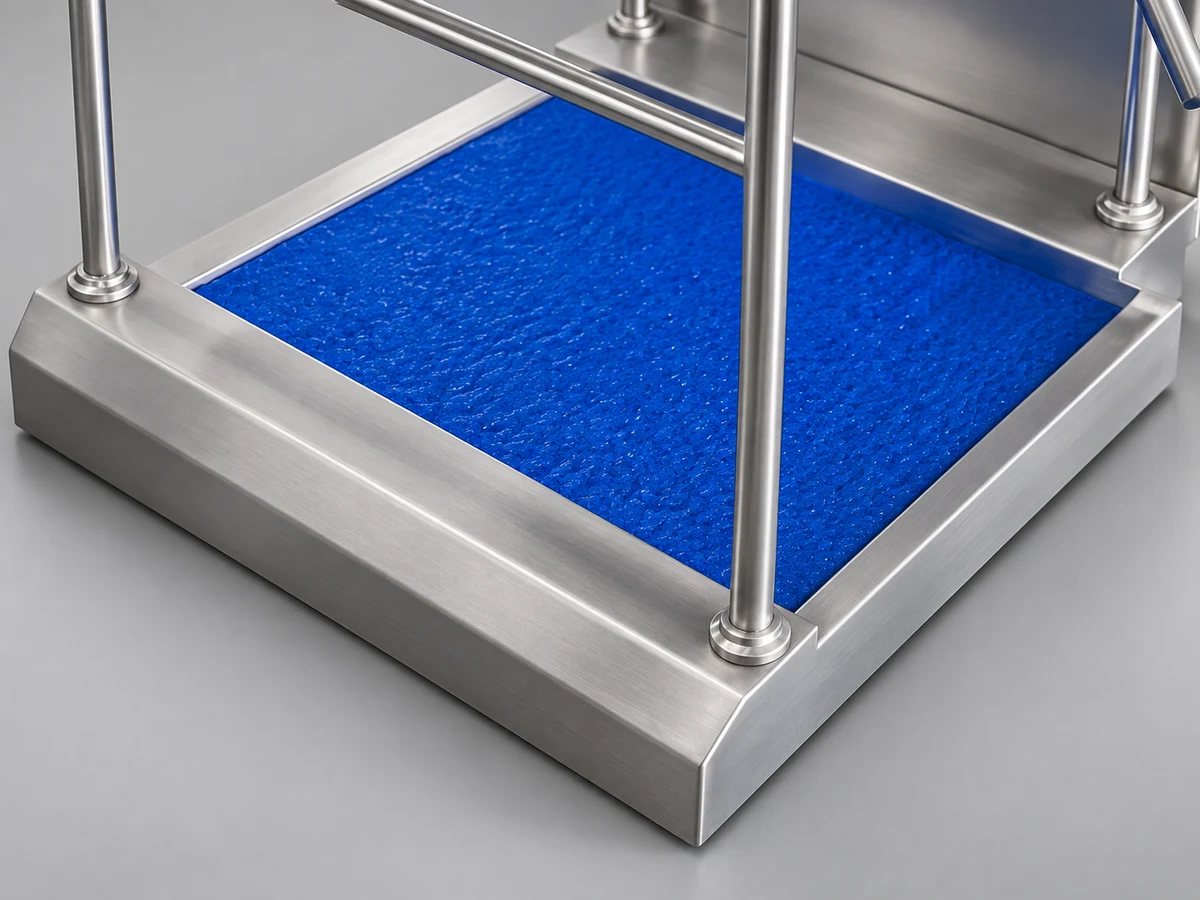

Matted disinfectant footbath
The stainless steel footbath with a textured blue mat brings footwear and boot soles into contact with disinfectant during passage.
Provides compact sole disinfection without a separate motorized brush system.Compact 95 cm body
PPE dispensing, hand and sole disinfection, and turnstile access fit within a 95 × 95 cm footprint.
Controlled hygiene sequence
The dual-hand disinfection unit and electric turnstile link the hygiene step to personnel access.
Organized PPE preparation
The 2+1 dispenser keeps protective equipment accessible at the start of the hygiene area.
Project-specific configuration
Passage direction, connections and corridor layout are reviewed for the project with Umran Makine’s production and service team.
Design and safety features
-
Hygienic design to HACCP principles Washable seamless surfaces, a body without dead spaces and an enforced step sequence; the personnel entrance can be documented as a control point in the HACCP plan.
-
Free passage on power failure When the power fails the turnstile arms are released and the evacuation direction is never blocked; locked behaviour is available on request.
-
Modular body, easy to relocate The footbath, turnstile modules separate so the unit passes through a standard 80 cm doorway and can be relocated within the facility.
-
Easy refilling and cleaning Disinfectant and soap reservoirs are replaced behind a locked panel; washable surfaces keep daily cleaning to minutes.
-
Access-control and time-attendance integration A dry-contact input connects card, fingerprint or face-recognition readers and time-attendance systems to the turnstile, so each completed hygiene pass is logged.
TECHNICAL INFORMATION
Technical specifications and standard equipment
| Material | Entirely manufactured from AISI 304 stainless steel |
|---|---|
| Size (L×W×H) | 95 × 95 × 150 cm |
| Approx. weight | Approx. 95 kg |
| Passage width | Clear passage width approx. 60 cm |
| Mounting | Height-adjustable feet |
| Power supply | 220–240V 50/60Hz |
|---|---|
| Total connected load | Max. 0.1 kW (disinfectant pump, sensors and turnstile lock) |
| Ambient temperature | +5 to +40 °C (protect from frost) |
| Water | No mains water connection required; the disinfectant reservoir and matted footbath are filled manually |
| Hand disinfection | Dual-hand sensor-controlled, disinfectant spray pump and 5 L disinfectant canister |
|---|---|
| PPE dispensers | 2-compartment upper, single wide lower |
| Sole disinfection | Matted disinfectant footbath |
| Turnstile | Three-arm electric |
|---|---|
| Passage time | Turnstile release cycle adjustable between 8 and 15 s |
| Passage capacity | Approx. 4–6 people/min (hand disinfection + turnstile cycle); confirmed by measurement at the facility. |
| Protection class | Control cabinet and electrical components rated IP65 |
| Power failure | Turnstile arms are released (fail-safe); a locked (fail-secure) configuration is available on request |
| Access-control integration | Dry-contact input; optional integration with card readers, fingerprint or face recognition and time-attendance (PDKS) systems |
| Disinfectant consumption | Approx. 3–5 ml per pass; a 5 L reservoir covers approx. 1,000–1,500 passes |
STANDARDS AND AUDITS
Compliance & Documentation
Umran hygiene stations form the standard personnel-entrance control point required in HACCP, BRCGS, IFS and ISO 22000 certification. Standard names and logos belong to their respective bodies.
-
Designed in line with ISO, CE and HACCP principles
Hygienic design to HACCP principles: The hygiene station is designed with the relevant hygiene and machinery-safety principles in mind; this statement does not claim a specific certificate number.
Read the guide -
Warranty certificate
The warranty certificate is recorded in our system together with the product documentation.
-
User manual
A user manual covering installation, safe operation, cleaning and basic maintenance is supplied with the product.
-
Personnel-hygiene control point in BRCGS, IFS and ISO 22000 audits
Meets the personnel-hygiene requirements of BRCGS Food Safety Issue 9 (4.8.4, 7.2.2, 8.4.1), IFS Food v8 (§3.2) and ISO 22000:2018 / ISO 22002-1:2025 (clause 13) on one line; the entrance becomes a documented control point in the audit.
Read the guide

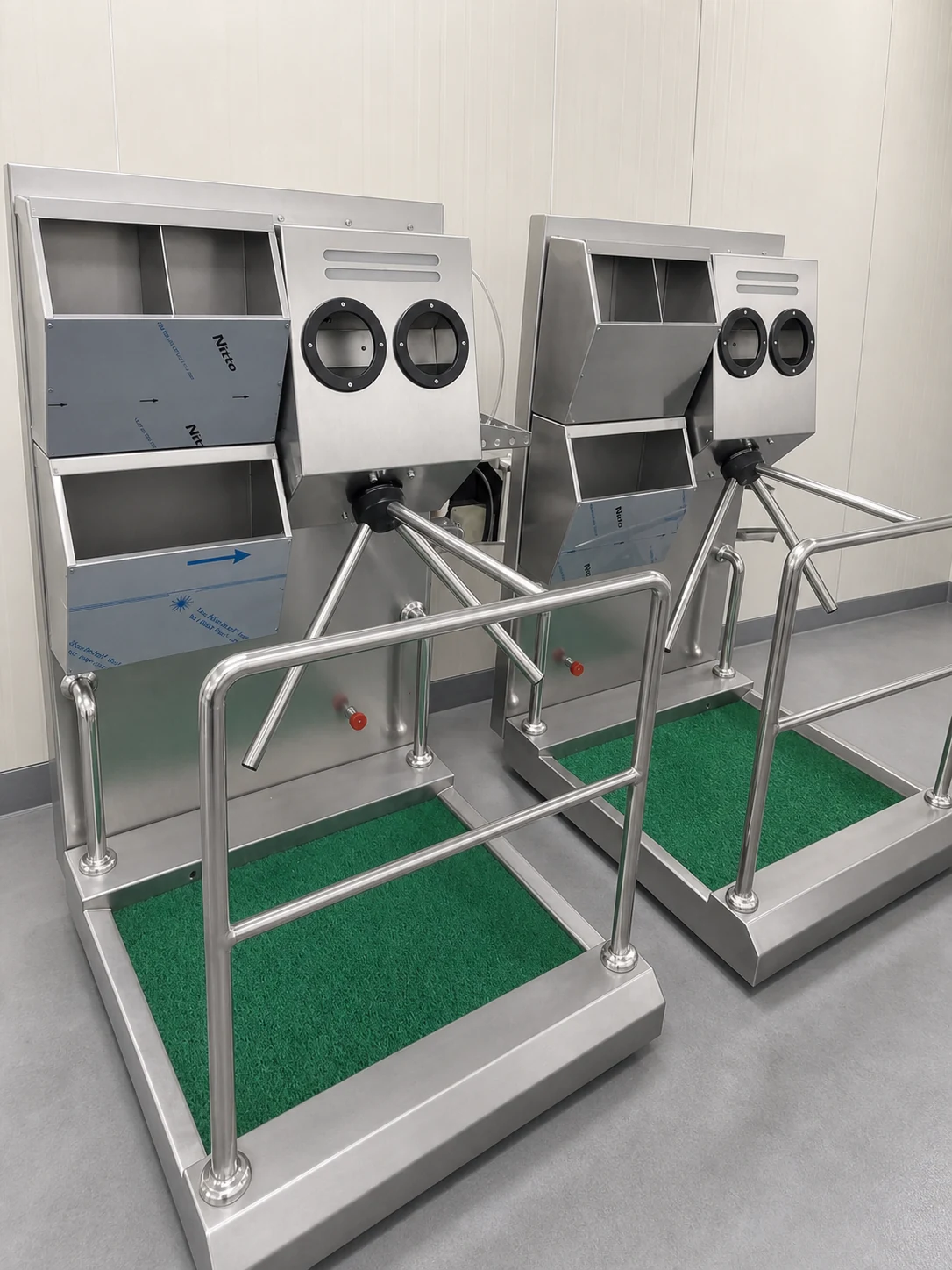

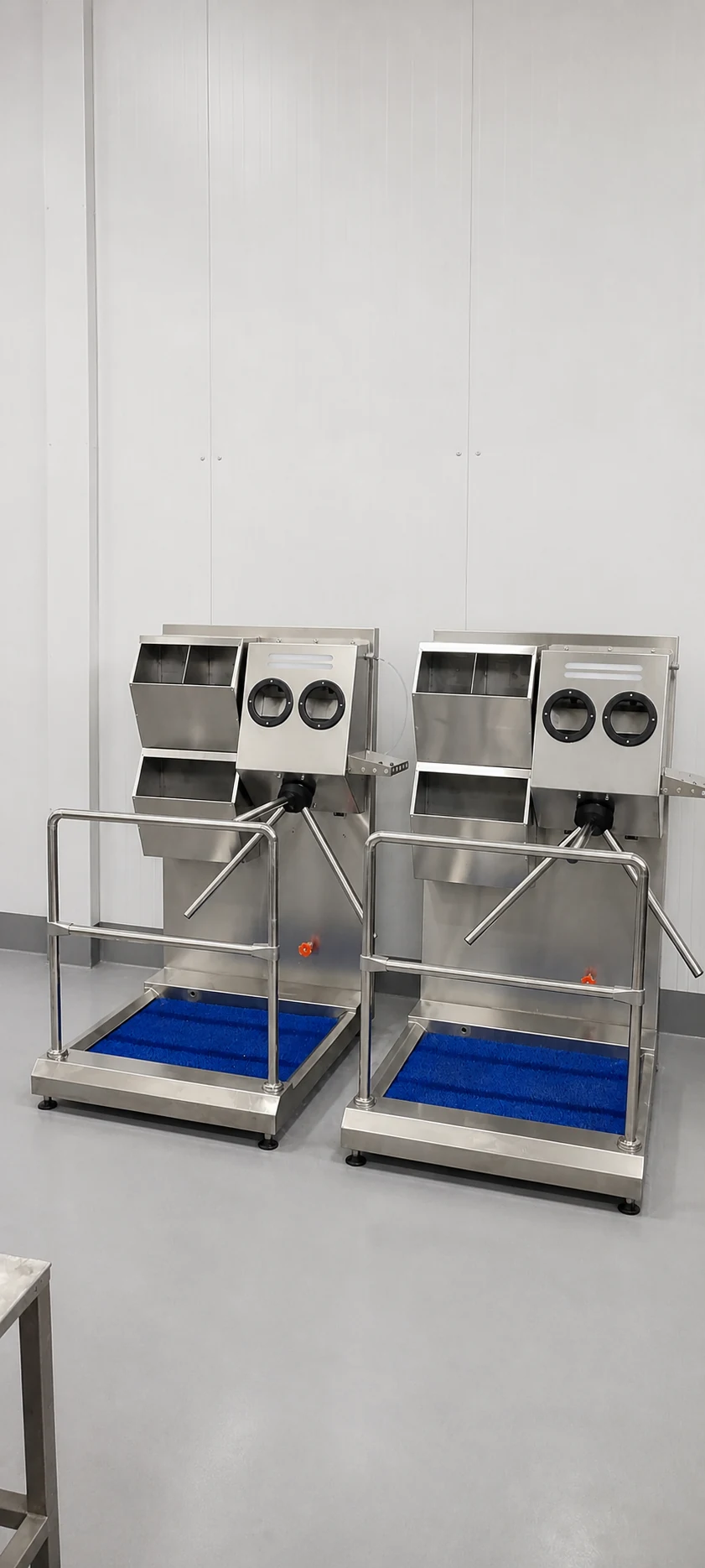

Product photographs
Explore the equipment and its different configurations in detail.
WHY UMRAN MAKINE
Why Umran Makine for HGE-S?
The same team designs, manufactures and services the product.
- Manufacturing under our own brand for over 13 years
Since 2012 design, welding, assembly and service have taken place at our own company, today in Pendik, İstanbul. No intermediaries: the team that designs the product also builds and services it.
- 180+ corporate references
Our equipment is installed in food, dairy, meat and poultry, confectionery, packaging, agriculture, public-sector and industrial-kitchen facilities. See the reference list. See our references
- Entirely AISI 304 stainless steel
Body and components are made from washable, corrosion- and chemical-resistant AISI 304 stainless steel; 4 product families and 29 models share the same material discipline.
- Facility-specific configuration
Passage direction follows the facility flow; on models with a control system, cycle times and access modes (entry only, closed return, bidirectional) are adjustable.
- 2-year manufacturer warranty
Every unit ships with its warranty certificate and user manual, manufactured under an ISO 9001:2015 certified quality management system.
- Spare parts, service and export
Spare parts and service come from our own workshop; packaged shipping to all of Türkiye and to Europe, the Balkans, the Middle East, the Gulf, the Caucasus, Central Asia and North Africa. See our references
APPLICATIONS
For hygiene-critical personnel entrances
Model suitability is determined by considering soil load, shift density, available space and the facility hygiene procedure together.
Meat and poultry processing
For facilities combining PPE preparation, hand disinfection and sole disinfection at a controlled entrance.
Explore the applicationDairy processing plants
For organizing PPE and disinfection steps at compact personnel entrances that do not require a washbasin.
Explore the applicationFood processing and packaging
For managing the clean-to-dirty boundary with turnstile-controlled hygiene access.
Explore the applicationIndustrial kitchens
For combining PPE and disinfection requirements at one point in limited corridor space.
Explore the applicationPharmaceutical and cosmetics production
For clean production entrances requiring PPE, hand and sole disinfection together with controlled personnel access.
Explore the applicationCONFIGURATION AND INSTALLATION
Define the facility flow before ordering
The correct layout depends on more than product dimensions. Personnel flow, approach space and facility connections are reviewed together.
Read the hygiene station maintenance guidePersonnel flow and passage direction
Shift peaks, clean-to-dirty direction and turnstile logic are reviewed with the placement decision.
Corridor and service space
Alongside the 95 × 95 cm footprint, approach distance, rail clearance and maintenance access are planned.
Electrical and water connections
The 220–240 V 50/60 Hz supply and the product’s water and drainage connection positions are confirmed before ordering.
PPE and disinfectant replenishment
Refilling and service access are planned for the 2+1 dispenser and the 5 L disinfectant canister.
MAINTENANCE AND CONSUMABLES
Years of the same performance with routine care
The stainless body is wiped with a chloride-free cleaner, reservoirs are refilled before they run empty, and the sensors and turnstile mechanism are checked periodically. Frequency increases with the soil load.
Maintenance and cleaning guide| Daily | Wiping and rinsing the stainless surfaces, disinfectant and soap reservoir level check, renewing the footbath disinfectant |
|---|---|
| Weekly | Sensor and photocell cleaning, nozzle flow check, turnstile movement test |
| Monthly | Dosing system flush, connection and screw tightness, cable and plug check, deep surface cleaning |
| 3–6 months | General check of the lock mechanism and electronics, manufacturer service if needed |
TECHNICAL FAQ
Frequently asked questions about HGE-S
Technical content: Efkan Turan Yağcı
, Founder · Owner
Last technical review:
What is the HGE-S hygiene station? +
HGE-S is a compact 95 cm AISI 304 stainless steel hygiene station combining a 2+1 PPE dispenser, dual-hand sensor disinfection, a matted disinfectant footbath and a three-arm electric turnstile.
Does HGE-S include a washbasin? +
No. HGE-S does not include a hand washbasin; its hand-hygiene function is the dual-hand sensor disinfection unit. Other HGE models should be evaluated when a washbasin is required.
How are the PPE compartments arranged? +
The PPE module has two separate upper dispensing compartments and one wide lower compartment. Hairnets, masks, gloves and similar equipment are arranged according to the facility procedure.
How is sole disinfection provided? +
Footwear and boot soles contact disinfectant while crossing the textured blue mat inside the stainless steel footbath. Disinfectant selection and replacement frequency follow the facility hygiene procedure.
What utilities are required for HGE-S installation? +
HGE-S uses a 220–240 V 50/60 Hz electrical supply. Water, drainage, placement and connection points are confirmed during the pre-order technical review for the corridor and facility procedure.
What happens to the HGE-S turnstile if the power fails? +
When the power fails the turnstile arms are released (fail-safe) and the evacuation direction is never blocked. If the facility procedure requires locked behaviour, a fail-secure configuration is prepared on request.
Can HGE-S be integrated with card readers or a time-attendance system? +
Yes. The dry-contact input on the control system integrates with card readers, fingerprint or face recognition and time-attendance (PDKS) systems, so each completed hygiene pass is logged. The integration is planned during the pre-order technical review.
Which hand disinfectant should be used with HGE-S? +
Liquid (non-gel) alcohol-based or quaternary-ammonium industrial hand disinfectants are suitable for the spray nozzles. Gel products can block the nozzles. The contact time on the product label is taken into account when setting the passage cycle.
Can HGE-S be pressure-washed? +
The body and components are washable AISI 304 stainless steel, and the control cabinet and electrical components are rated IP65. Daily cleaning uses low-pressure water and a stainless-steel surface cleaner; high-pressure jets are not aimed directly at the sensors or the cabinet door.
