Mechanical or electromechanical
The standard mechanical turnstile needs no power; the electromechanical option offers controlled release on a 220–240 V supply.
Hygiene Station
TRN One-Way Stainless Steel Turnstile

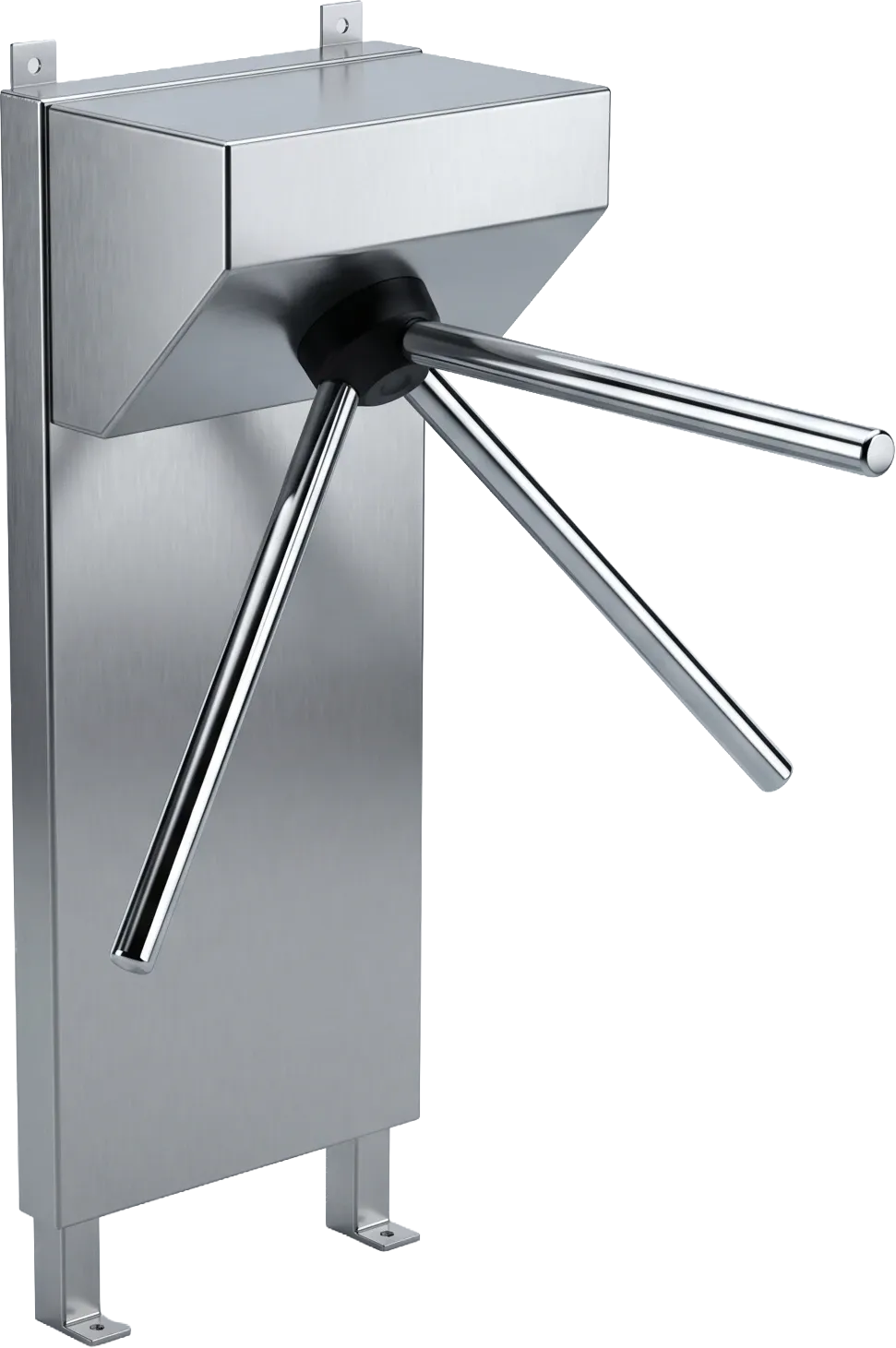

Three-arm mechanical or electromechanical AISI 304 turnstile for controlled one-way passage; wall- and/or floor-mountable.
Material
AISI 304
Size (L×W×H)
70 × 80 × 110 cm
Power supply
Optional: 220–240V 50/60Hz
Sole disinfection
Optional: HP8050 hygiene mat
HACCP-compliant hygienic design Built to CE norms ISO 9001:2015 certified manufacturer 2-year manufacturer warranty
PERSONNEL HYGIENE IN ONE LINE
TRN: one-way controlled personnel passage
TRN is a three-arm one-way turnstile that ties personnel flow to a single direction at the end of a hygiene line or at the exit of a production area. The standard mechanical model needs no power; the electromechanical option runs on a 220–240 V supply. The 70 × 80 × 110 cm body is wall- and/or floor-mounted and is placed on the exit side of the line to stop hygiene stations being used in the reverse direction.
Manufactured entirely from AISI 304 stainless steel in our own workshop, TRN is ordered with the free passage direction that matches the facility flow. The mounting surface, corridor width and headcount are reviewed together before quotation; the optional HP8050 hygiene mat adds sole disinfection to the exit passage. The washable stainless body gives a long service life in wet, frequently cleaned areas.
The 2-year manufacturer warranty, spare parts and service are provided directly from our workshop in Pendik. The technical sheet PDF can be downloaded from this page, and units ship packaged across Türkiye and to export markets.
INTEGRATED FUNCTIONS
Functions built into the TRN hygiene station
Each module addresses a distinct personnel-entry hygiene need. Passage logic and facility integration are confirmed before ordering.
TRNINTEGRATED HYGIENE LINE
Wall and/or floor mounting
Mounts to the wall and/or floor at existing corridors and exit points in a 70 × 80 cm footprint.
Entirely AISI 304 stainless steel
The TRN body and components are made from AISI 304 stainless steel; washable, corrosion- and chemical-resistant.
Built and serviced in our own workshop
Design, manufacturing, spare parts and service come from our workshop in Pendik; every unit carries a 2-year manufacturer warranty.
Design and safety features
-
Hygienic design to HACCP principles Washable seamless surfaces, a body without dead spaces and an enforced step sequence; the personnel entrance can be documented as a control point in the HACCP plan.
-
Power-independent mechanical passage The mechanical turnstile works without electricity; on the electromechanical option the arms are released when the power fails.
-
Modular body, easy to relocate The compact body passes through a standard 80 cm doorway; it is anchored to the floor and can be relocated when needed.
-
Low-maintenance mechanism The stainless three-arm mechanism needs no maintenance beyond lubrication; the arms can be removed and replaced individually.
-
Electromechanical access-control option On the electromechanical option a dry-contact input connects card readers and time-attendance systems to the turnstile.
TECHNICAL INFORMATION
Technical specifications and standard equipment
| Material | AISI 304 |
|---|---|
| Size (L×W×H) | 70 × 80 × 110 cm |
| Approx. weight | Approx. 45 kg |
| Passage width | Clear passage width approx. 60 cm |
| Mounting | Wall- and/or floor-mountable |
| Power supply | Optional: 220–240V 50/60Hz |
|---|---|
| Total connected load | The mechanical turnstile needs no power; the electromechanical option draws approx. 0.05 kW |
| Turnstile | Three-arm mechanical (optional: three-arm electric) |
|---|---|
| Passage time | Approx. 3 s (mechanical passage) |
| Passage capacity | Approx. 15–20 people/min (mechanical passage; no hygiene step) |
| Access-control integration | Dry-contact input on the electromechanical option; integration with card readers and time-attendance (PDKS) systems |
| Power failure | The mechanical turnstile is independent of power; on the electromechanical option the arms are released (fail-safe) |
| Sole disinfection | Optional: HP8050 hygiene mat |
| Category | Hygiene Stations |
| Product code | TRN |
STANDARDS AND AUDITS
Compliance & Documentation
Umran hygiene stations form the standard personnel-entrance control point required in HACCP, BRCGS, IFS and ISO 22000 certification. Standard names and logos belong to their respective bodies.
-
Designed in line with ISO, CE and HACCP requirements
Hygienic design to HACCP principles: The product design takes the applicable ISO, CE and HACCP requirements into account.
Read the guide -
Warranty certificate
The warranty certificate is recorded in our system together with the product documentation.
-
User manual supplied
The user manual is included in the delivery documentation.
-
Personnel-hygiene control point in BRCGS, IFS and ISO 22000 audits
Meets the personnel-hygiene requirements of BRCGS Food Safety Issue 9 (4.8.4, 7.2.2, 8.4.1), IFS Food v8 (§3.2) and ISO 22000:2018 / ISO 22002-1:2025 (clause 13) on one line; the entrance becomes a documented control point in the audit.
Read the guide

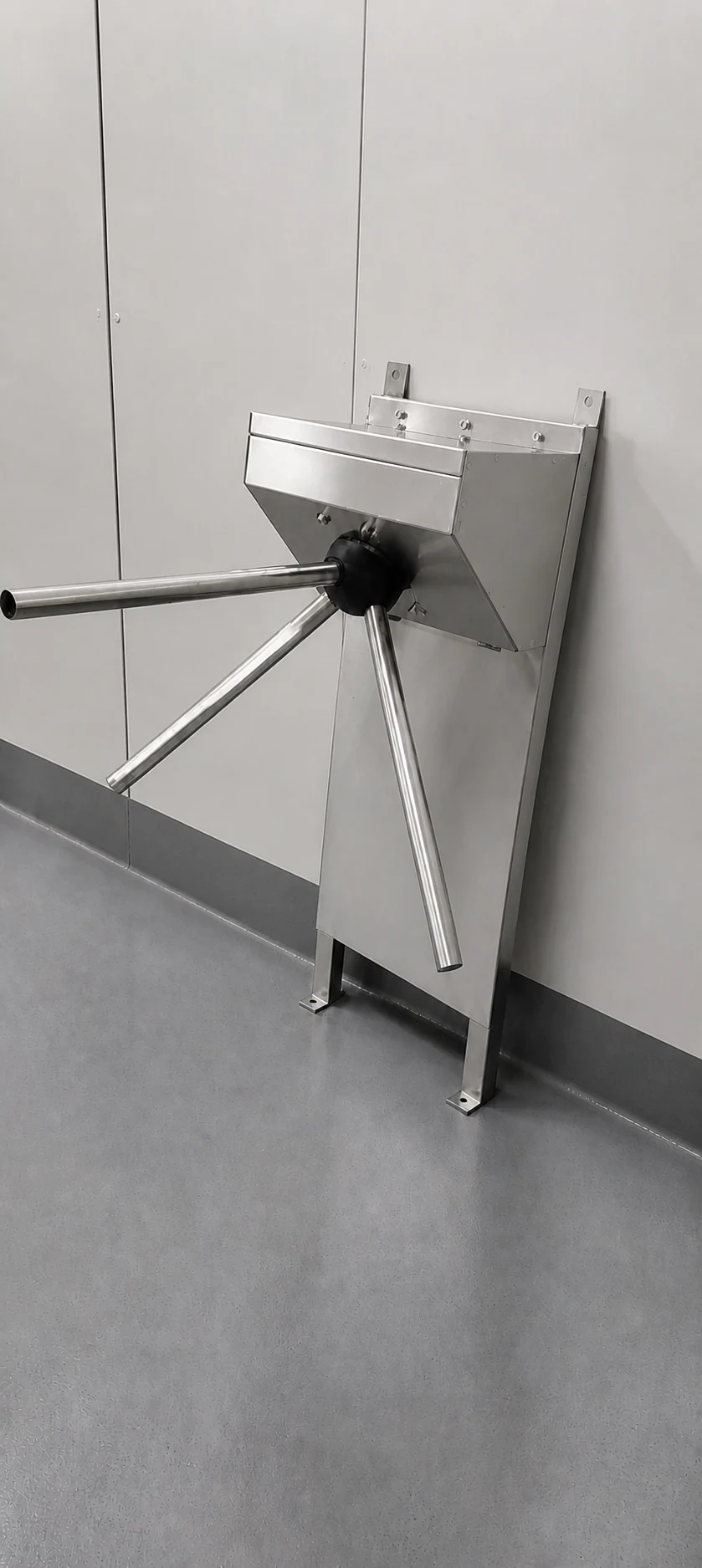

Product photographs
Explore the equipment and its different configurations in detail.
WHY UMRAN MAKINE
Why Umran Makine for TRN?
The same team designs, manufactures and services the product.
- Manufacturing under our own brand for over 13 years
Since 2012 design, welding, assembly and service have taken place at our own company, today in Pendik, İstanbul. No intermediaries: the team that designs the product also builds and services it.
- 180+ corporate references
Our equipment is installed in food, dairy, meat and poultry, confectionery, packaging, agriculture, public-sector and industrial-kitchen facilities. See the reference list. See our references
- Entirely AISI 304 stainless steel
Body and components are made from washable, corrosion- and chemical-resistant AISI 304 stainless steel; 4 product families and 29 models share the same material discipline.
- Facility-specific configuration
Passage direction follows the facility flow; on models with a control system, cycle times and access modes (entry only, closed return, bidirectional) are adjustable.
- 2-year manufacturer warranty
Every unit ships with its warranty certificate and user manual, manufactured under an ISO 9001:2015 certified quality management system.
- Spare parts, service and export
Spare parts and service come from our own workshop; packaged shipping to all of Türkiye and to Europe, the Balkans, the Middle East, the Gulf, the Caucasus, Central Asia and North Africa. See our references
APPLICATIONS
For hygiene-critical personnel entrances
Model suitability is determined by considering soil load, shift density, available space and the facility hygiene procedure together.
Meat and poultry processing
For meat and poultry plants where one-way personnel flow between soiled and clean areas is mandatory.
Explore the applicationDairy processing plants
For preventing reverse use of the hygiene line at the exit of dairy processing areas.
Explore the applicationFruit and vegetable processing
For separating entry and exit flow at washing and packing lines.
Explore the applicationCatering and industrial kitchens
For tying busy shift flow to a single direction at industrial kitchen exits.
Explore the applicationCONFIGURATION AND INSTALLATION
Define the facility flow before ordering
The correct layout depends on more than product dimensions. Personnel flow, approach space and facility connections are reviewed together.
Read the hygiene station maintenance guidePassage direction
TRN is ordered with the free passage direction that matches the facility flow; the arms block passage in the opposite direction.
Personnel flow
Shift headcount and exit peaks are included in the layout review before quotation.
Mounting and footprint
The 70 × 80 cm footprint and the wall and/or floor mounting surface are planned together with the corridor width.
Utility connections
The mechanical model needs no power; for the electromechanical option the 220–240 V 50/60 Hz supply point is confirmed before ordering.
MAINTENANCE AND CONSUMABLES
Years of the same performance with routine care
The stainless body is wiped with a chloride-free cleaner, reservoirs are refilled before they run empty, and the sensors and turnstile mechanism are checked periodically. Frequency increases with the soil load.
Maintenance and cleaning guide| Daily | Wiping and rinsing the stainless surfaces |
|---|---|
| Weekly | Turnstile movement test |
| Monthly | Mechanism lubrication, connection and screw tightness, deep surface cleaning |
| 3–6 months | General check of the lock mechanism and electronics, manufacturer service if needed |
TECHNICAL FAQ
Frequently asked questions about TRN
Technical content: Efkan Turan Yağcı
, Founder · Owner
Last technical review:
What is the TRN one-way turnstile? +
TRN is a three-arm AISI 304 turnstile, wall- and/or floor-mounted, that ties personnel flow to a single direction at the end of a hygiene line or at a production-area exit. The standard model is mechanical; an electromechanical option is offered on a 220–240 V supply.
What is included with TRN? +
The standard delivery covers the three-arm mechanical turnstile with wall and/or floor mounting preparation. The electromechanical turnstile and the HP8050 hygiene mat are optional.
Which facility points is TRN suitable for? +
It is considered for hygiene-line exits, production-area exits and transitions between soiled and clean areas in meat and poultry, dairy, fruit and vegetable and catering facilities. Final suitability depends on personnel flow, space and the facility procedure.
What does TRN installation require? +
The mechanical model needs no power or water connection and is wall- and/or floor-mounted. For the electromechanical option, the 220–240 V 50/60 Hz supply point and the mounting surface for the 70 × 80 × 110 cm unit are confirmed in the pre-order technical review.
What is the difference between TRN and DSE? +
DSE adds a dual-hand sensor disinfection unit to the turnstile and ties hand disinfection to entry; TRN controls one-way passage only, without a disinfection unit. Choose DSE when a hygiene step is required at the entrance, and TRN when direction control at the exit is enough.
What are the TRN warranty, delivery and service terms? +
TRN is delivered with a 2-year manufacturer warranty, the warranty certificate and the user manual. Spare parts and service come from our workshop in Pendik, with packaged shipping across Türkiye and to export markets.
How does TRN provide evidence in a BRCGS or IFS audit? +
TRN physically enforces the passage direction; combined with a hand-disinfection unit (DSE or HGE) the personnel entrance becomes a documented control point in BRCGS Food Safety Issue 9, IFS Food v8 and ISO 22002-1:2025 audits.
How many people per minute can pass through TRN? +
Approx. 15–20 people/min in mechanical passage; because TRN includes no hygiene step, capacity is set only by personnel flow.
Can TRN be manufactured in AISI 316 stainless steel? +
Standard production is AISI 304 stainless steel, which withstands the washing chemicals used in food plants. For high-chloride or saline environments (seafood, brine) an AISI 316 option is quoted per project.
