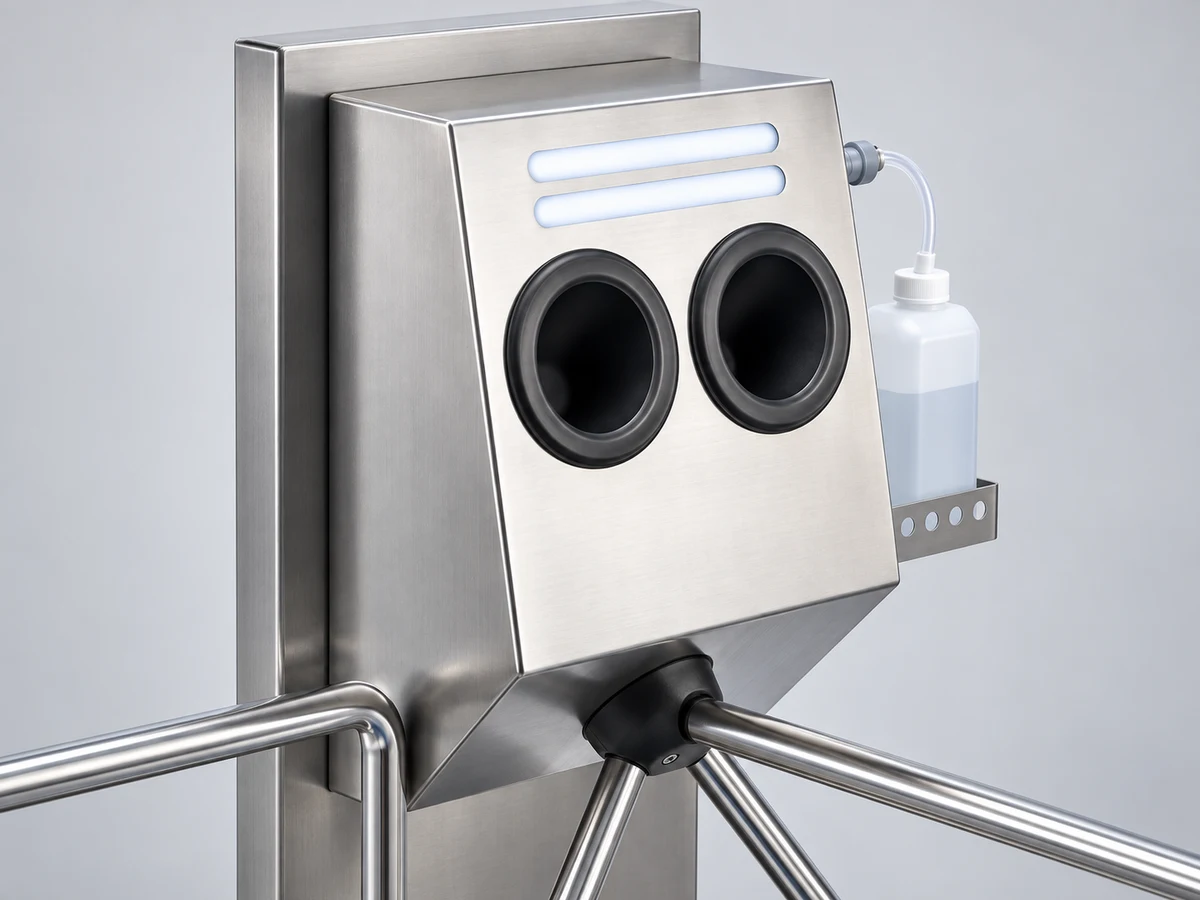

Dual-hand disinfection unit
Sensors in the two hand ports trigger a pump fed from a 5 L disinfectant canister for contactless spraying.
Places hand disinfection immediately before turnstile-controlled access. Hygiene Station
DSE-B Variable-Length Sole Cleaning Hygiene Station
Sole cleaning hygiene station adding motorized sole brushing to a dual-hand disinfection electric turnstile, with 400/600/800 mm brush options.
Material
AISI 304
Size (L×W×H)
190/170/150 × 100 × 175 cm
Power supply
380–400V 50/60Hz
Water
3 bar, max 50°C, 7 l/min
HACCP-compliant hygienic design Built to CE norms ISO 9001:2015 certified manufacturer 2-year manufacturer warranty
PERSONNEL HYGIENE IN ONE LINE
DSE-B: sole cleaning and hand-disinfection access control
DSE-B is a sole cleaning hygiene station that combines motorized sole brushing while walking with hand disinfection and turnstile-controlled access at the entrance to a clean production area, without a washbasin. Two entry-sensor-controlled industrial motorized roller brushes clean boot soles with a detergent or disinfectant pump as the user walks through; the three-arm electric turnstile does not release until the dual-hand sensor disinfection step is complete. Non-slip entry and exit steps support safe passage over the brush chamber.
Manufactured entirely from AISI 304 stainless steel in our own workshop, DSE-B is ordered with a 400, 600 or 800 mm brush chamber for a total length of 150, 170 or 190 cm, and the passage direction follows the facility flow. Its 380–400 V supply and 3 bar, 7 l/min water connection are reviewed together with headcount, boot soil load and service access before quotation.
The 2-year manufacturer warranty, spare parts and service are provided directly from our workshop in Pendik. The technical sheet PDF can be downloaded from this page, and units ship packaged across Türkiye and to export markets.
INTEGRATED FUNCTIONS
Functions built into the DSE-B hygiene station
Each module addresses a distinct personnel-entry hygiene need. Passage logic and facility integration are confirmed before ordering.

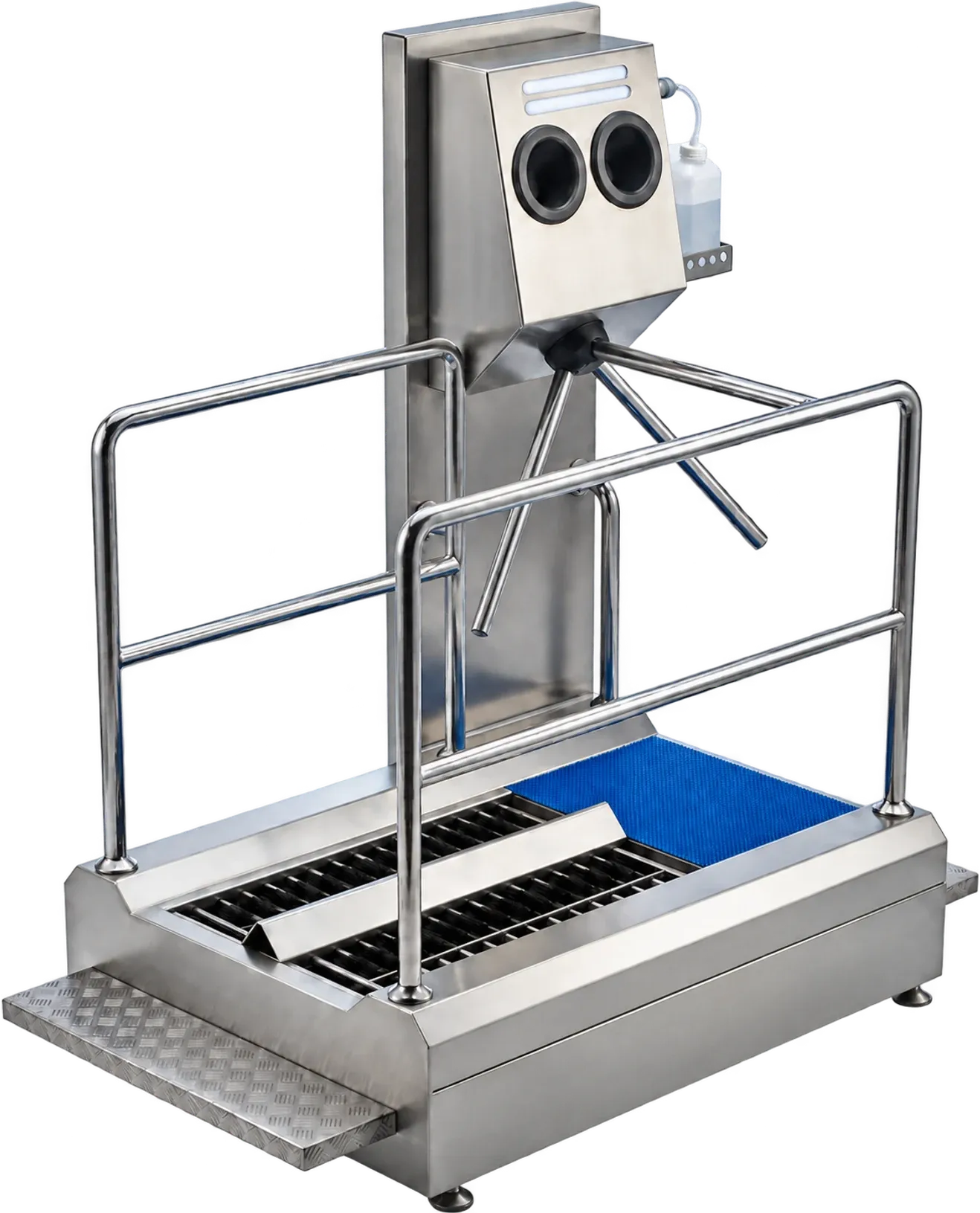

DSE-BINTEGRATED HYGIENE LINE
Three-arm electric turnstile
The electric tripod turnstile releases passage once the hand-disinfection step is complete.
Ensures the hygiene steps are completed before entry.
Stainless safety handrail
The round-section stainless handrail gives two support levels while crossing the footbath area.
Supports stable, guided movement on the wet surface.

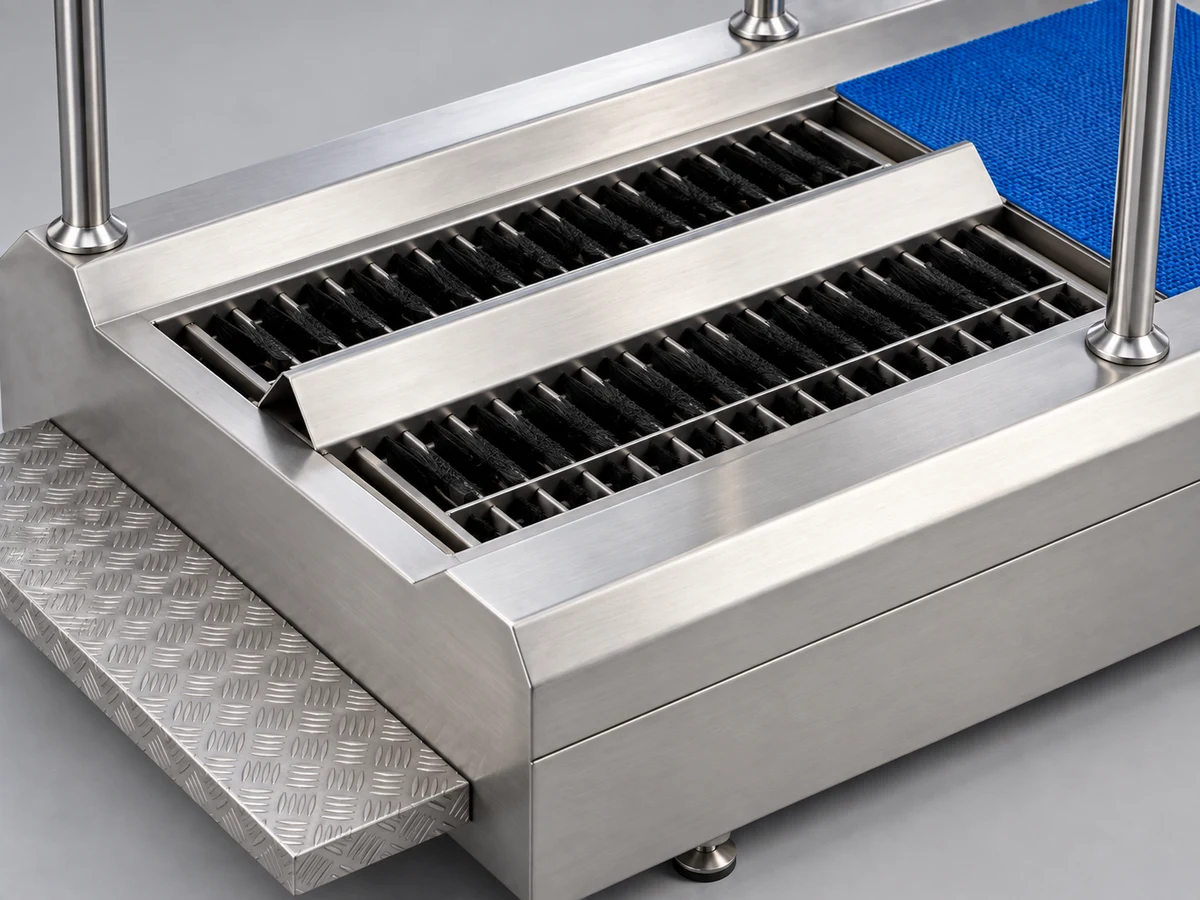

Motorized sole cleaning
Two entry-sensor-controlled industrial roller brushes clean footwear and boot soles during the passage with a detergent or disinfectant pump.
Completes sole cleaning while walking, without stopping.

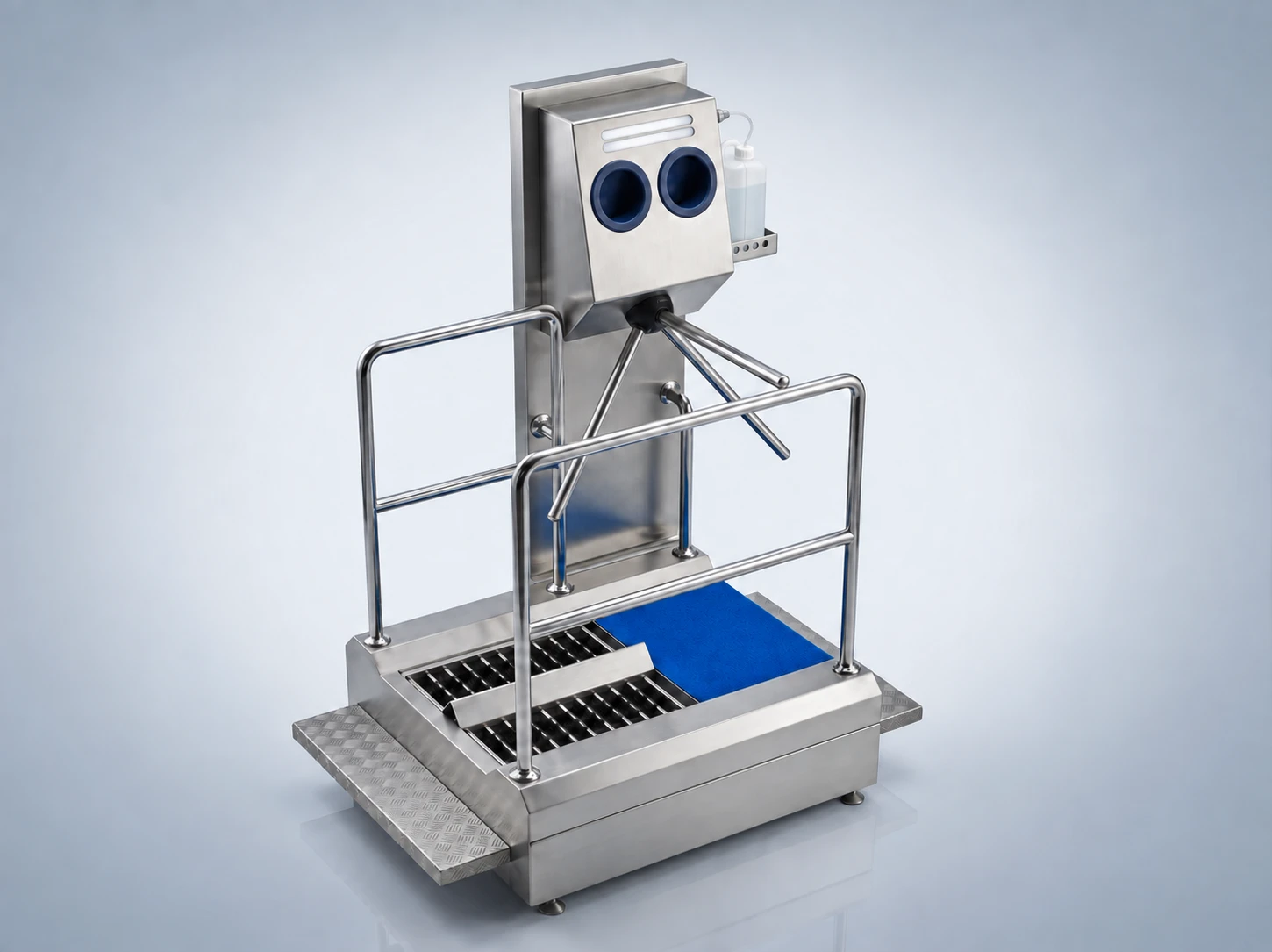

Non-slip entry and exit steps
Checker-plate stainless steps give safe entry to and exit from the brush chamber.
Reduces the risk of slipping in a wet environment.

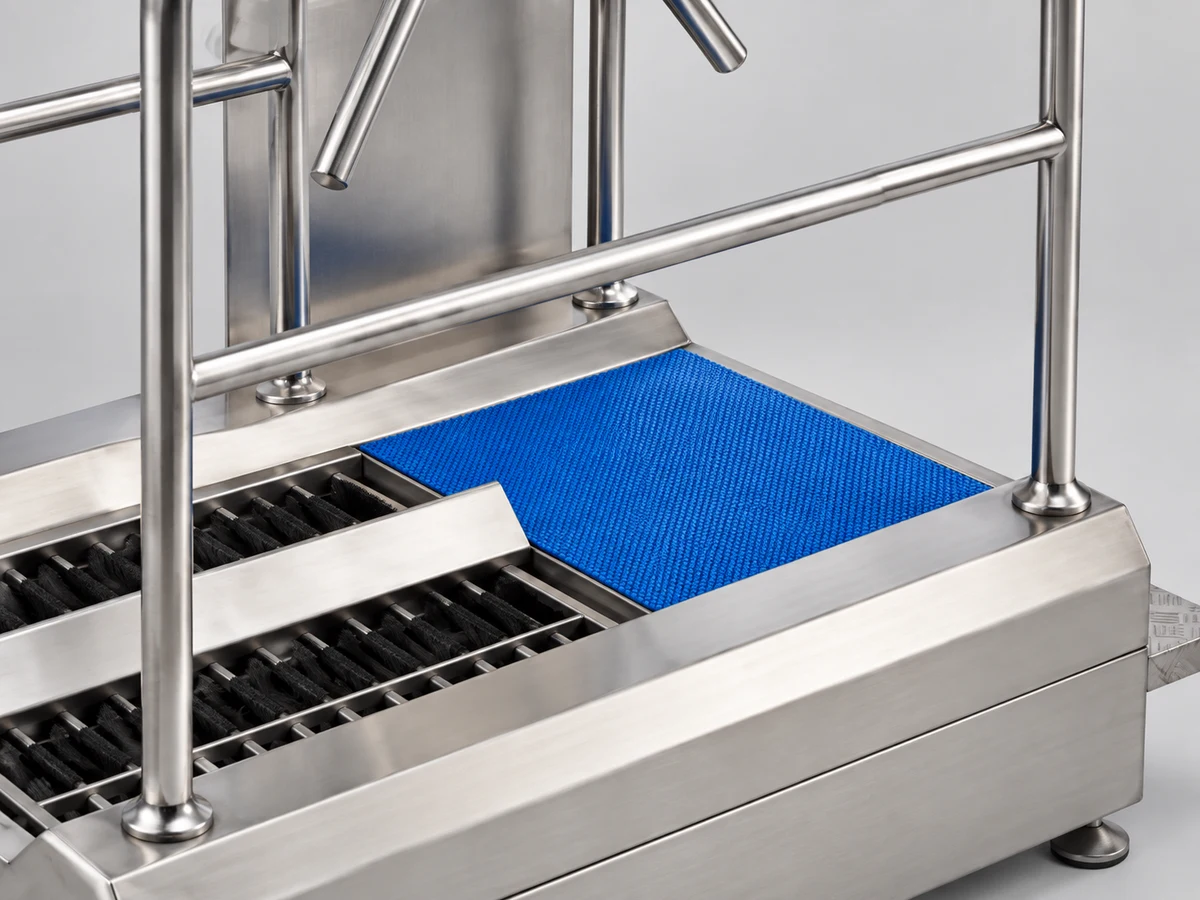

Moisture-removal mat
The mat beside the brushing section helps remove residual moisture from footwear and boot soles.
Completes the passage after sole cleaning.400/600/800 mm brush options
The brush chamber length is chosen for the soil load; total length becomes 150, 170 or 190 cm.
Sole brushing while walking
Motorized roller brushes clean the sole while walking; the turnstile stays locked until hand disinfection is complete.
Entirely AISI 304 stainless steel
The DSE-B body and components are made from AISI 304 stainless steel; washable, corrosion- and chemical-resistant.
Built and serviced in our own workshop
Design, manufacturing, spare parts and service come from our workshop in Pendik; every unit carries a 2-year manufacturer warranty.
Design and safety features
-
Hygienic design to HACCP principles Washable seamless surfaces, a body without dead spaces and an enforced step sequence; the personnel entrance can be documented as a control point in the HACCP plan.
-
Free passage on power failure When the power fails the turnstile arms are released and the evacuation direction is never blocked; locked behaviour is available on request.
-
Modular body, easy to relocate The sole-cleaning, turnstile modules separate so the unit passes through a standard 80 cm doorway and can be relocated within the facility.
-
Tool-free brush replacement The roller brushes are removed and refitted without tools, so daily cleaning and consumable replacement take minutes.
-
Access-control and time-attendance integration A dry-contact input connects card, fingerprint or face-recognition readers and time-attendance systems to the turnstile, so each completed hygiene pass is logged.
TECHNICAL INFORMATION
Technical specifications and standard equipment
| Material | AISI 304 |
|---|---|
| Size (L×W×H) | 190/170/150 × 100 × 175 cm |
| Approx. weight | Approx. 135 / 150 / 165 kg (400 / 600 / 800 mm brush) |
| Passage width | Clear passage width approx. 60 cm |
| Steps | Non-slip |
| Mounting | Adjustable feet |
| Power supply | 380–400V 50/60Hz |
|---|---|
| Total connected load | 0.6 kW (brush motors, pump and control system) |
| Water | 3 bar, max 50°C, 7 l/min |
| Waste-water drain | A floor drain (Ø50 mm) or waste-water connection is required at the installation point |
| Ambient temperature | +5 to +40 °C (protect from frost) |
| Hand disinfection | Dual-hand sensor-controlled, disinfectant spray pump and 5 L disinfectant canister |
|---|---|
| Sole brushing | 2 industrial motorized roller brushes with entry sensor, detergent or disinfectant pump |
| Turnstile | Three-arm electric |
|---|---|
| Passage time | Turnstile release cycle adjustable between 8 and 15 s |
| Passage capacity | Approx. 4–6 people/min (hand disinfection + turnstile cycle); confirmed by measurement at the facility. |
| Protection class | Control cabinet and electrical components rated IP65 |
| Emergency stop | Standard emergency-stop button; stops the brush motors immediately |
| Power failure | Turnstile arms are released (fail-safe); a locked (fail-secure) configuration is available on request |
| Access-control integration | Dry-contact input; optional integration with card readers, fingerprint or face recognition and time-attendance (PDKS) systems |
| Disinfectant consumption | Approx. 3–5 ml per pass; a 5 L reservoir covers approx. 1,000–1,500 passes |
| Category | Hygiene Stations |
| Product code | DSE-B |
STANDARDS AND AUDITS
Compliance & Documentation
Umran hygiene stations form the standard personnel-entrance control point required in HACCP, BRCGS, IFS and ISO 22000 certification. Standard names and logos belong to their respective bodies.
-
Designed in line with ISO, CE and HACCP requirements
Hygienic design to HACCP principles: The product design takes the applicable ISO, CE and HACCP requirements into account.
Read the guide -
Warranty certificate
The warranty certificate is recorded in our system together with the product documentation.
-
User manual supplied
The user manual is included in the delivery documentation.
-
Personnel-hygiene control point in BRCGS, IFS and ISO 22000 audits
Meets the personnel-hygiene requirements of BRCGS Food Safety Issue 9 (4.8.4, 7.2.2, 8.4.1), IFS Food v8 (§3.2) and ISO 22000:2018 / ISO 22002-1:2025 (clause 13) on one line; the entrance becomes a documented control point in the audit.
Read the guide

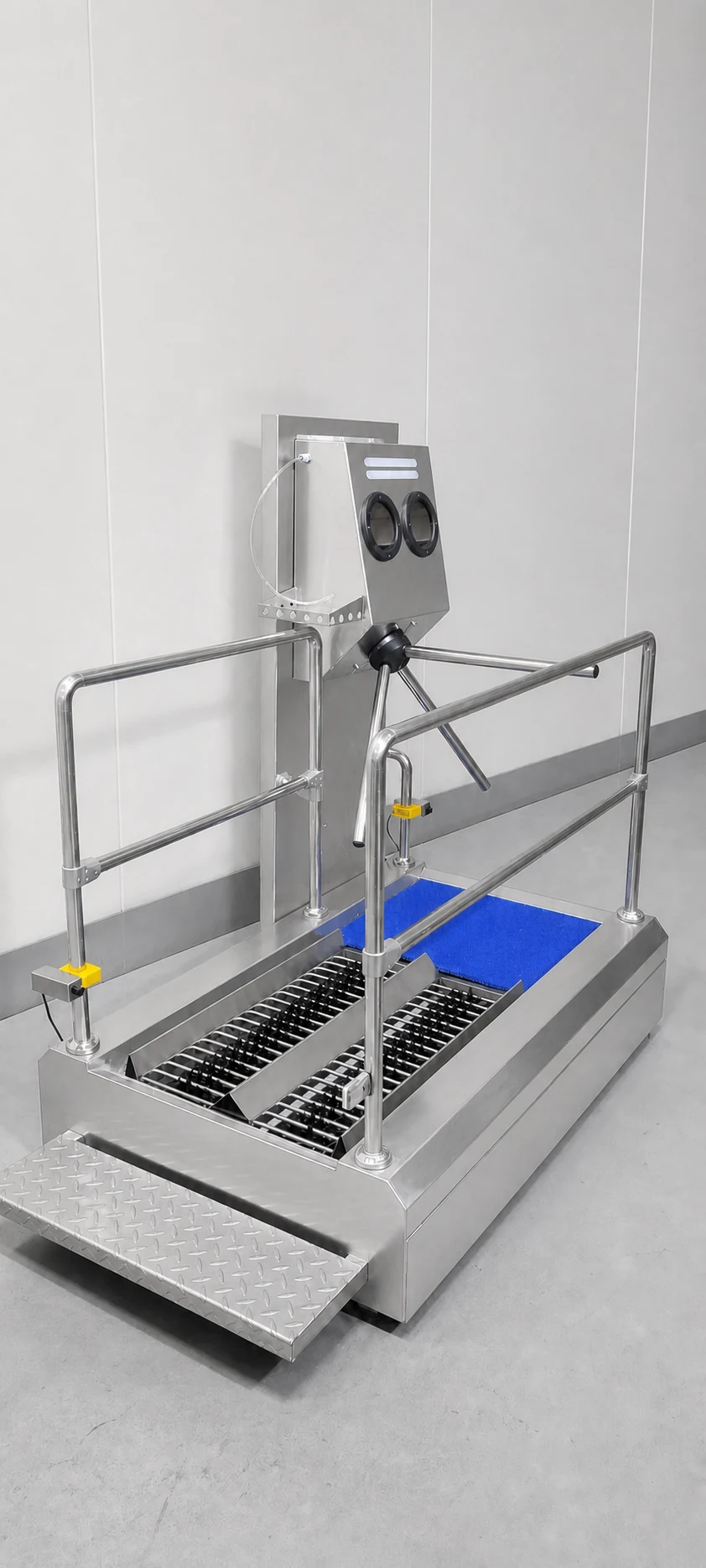

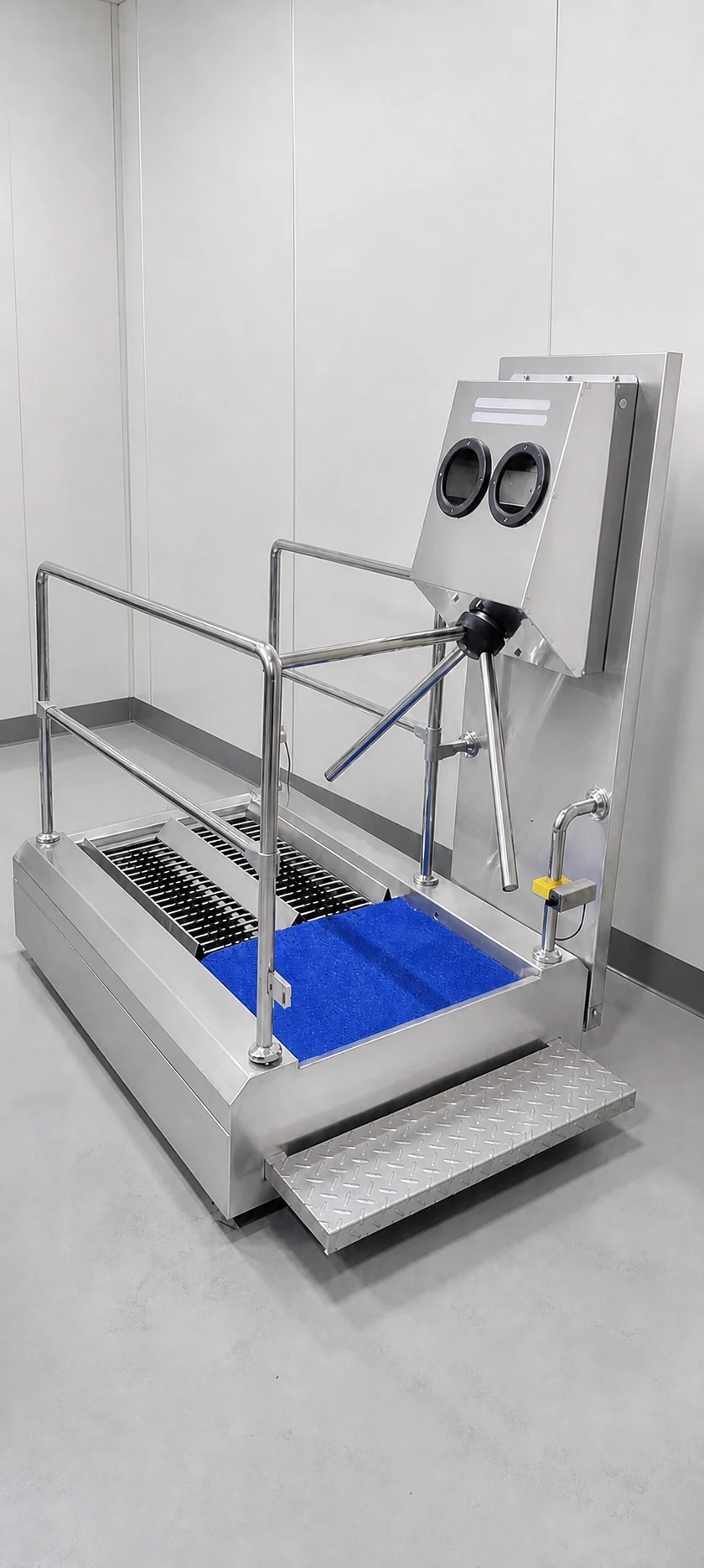

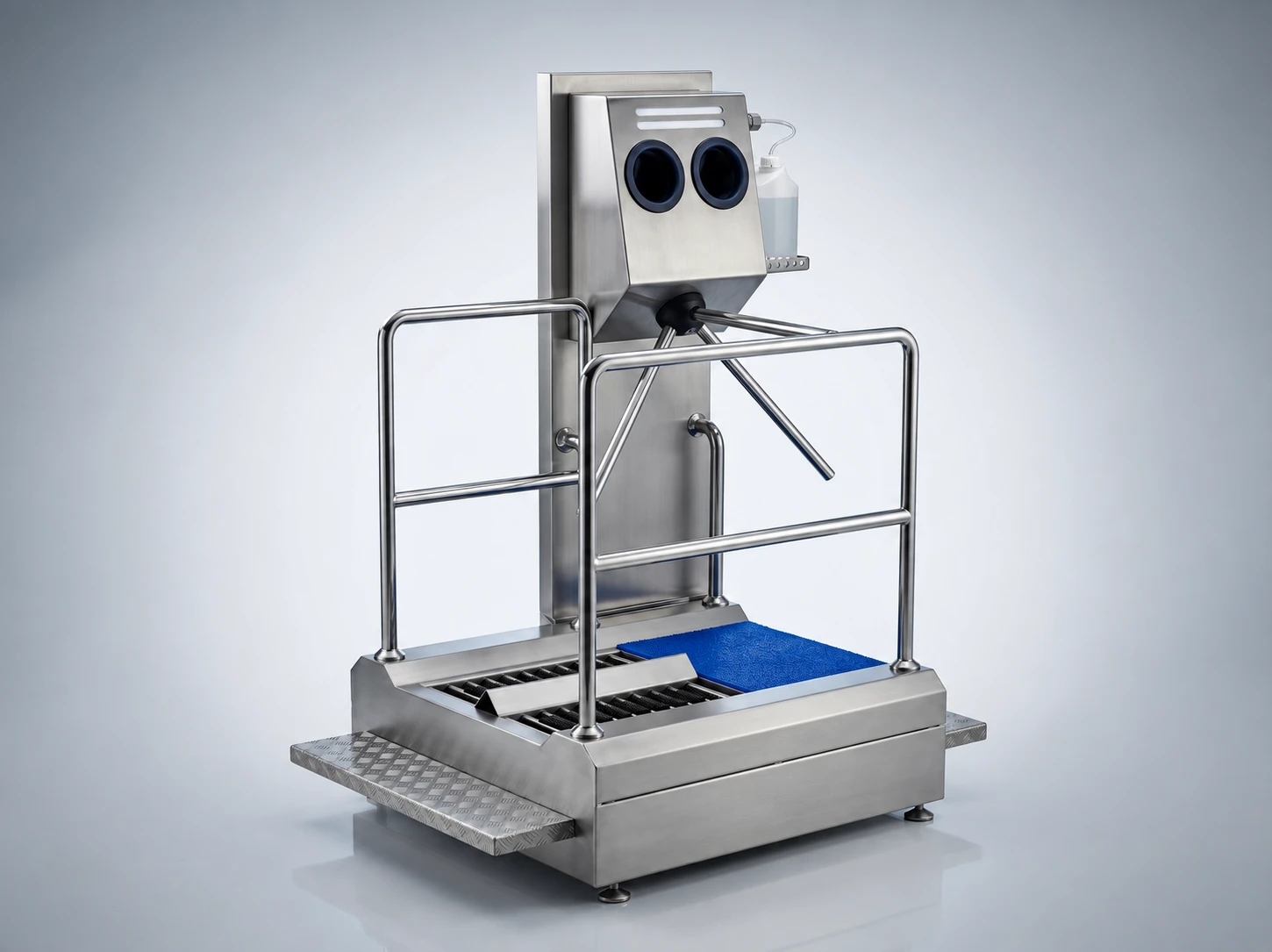

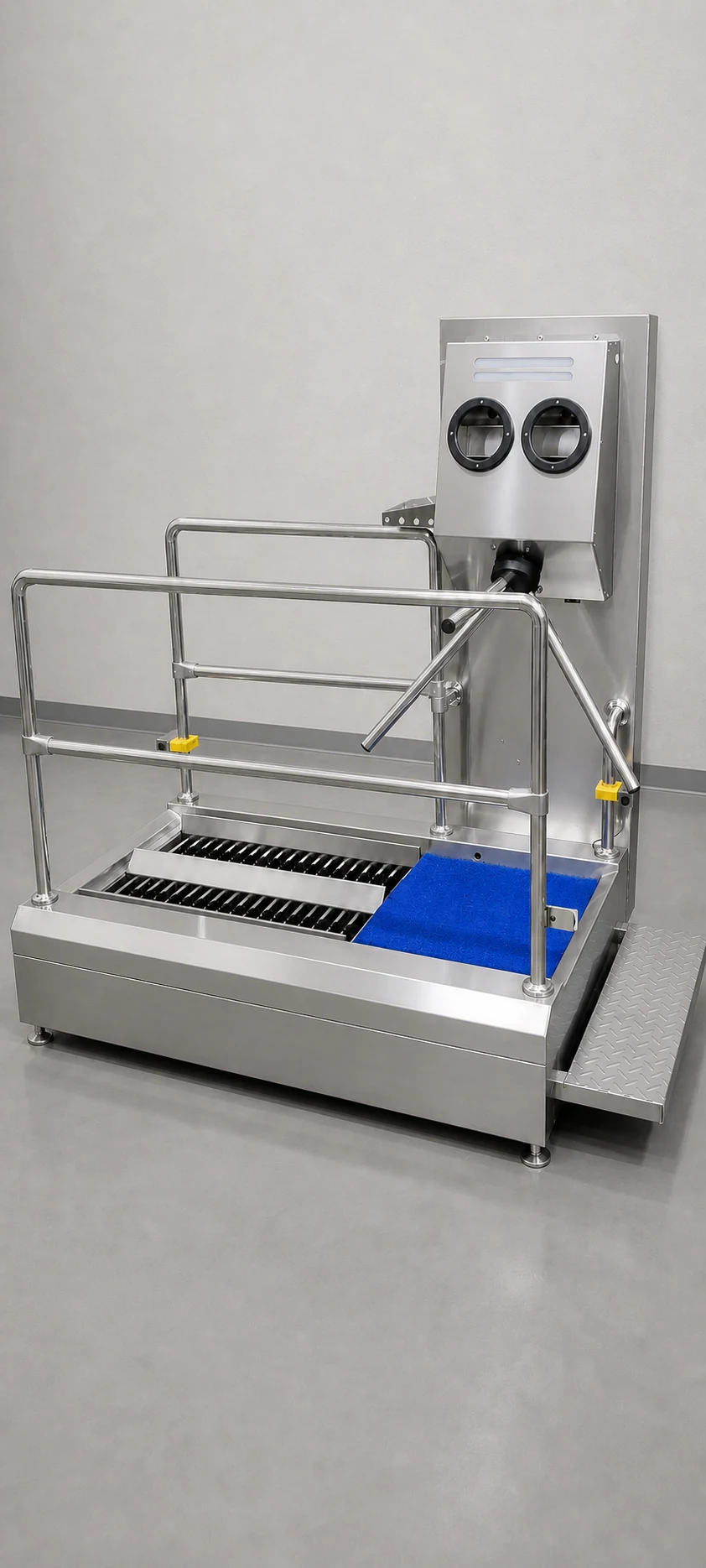

Product photographs
Explore the equipment and its different configurations in detail.
WHY UMRAN MAKINE
Why Umran Makine for DSE-B?
The same team designs, manufactures and services the product.
- Manufacturing under our own brand for over 13 years
Since 2012 design, welding, assembly and service have taken place at our own company, today in Pendik, İstanbul. No intermediaries: the team that designs the product also builds and services it.
- 180+ corporate references
Our equipment is installed in food, dairy, meat and poultry, confectionery, packaging, agriculture, public-sector and industrial-kitchen facilities. See the reference list. See our references
- Entirely AISI 304 stainless steel
Body and components are made from washable, corrosion- and chemical-resistant AISI 304 stainless steel; 4 product families and 29 models share the same material discipline.
- Facility-specific configuration
Passage direction follows the facility flow; on models with a control system, cycle times and access modes (entry only, closed return, bidirectional) are adjustable.
- 2-year manufacturer warranty
Every unit ships with its warranty certificate and user manual, manufactured under an ISO 9001:2015 certified quality management system.
- Spare parts, service and export
Spare parts and service come from our own workshop; packaged shipping to all of Türkiye and to Europe, the Balkans, the Middle East, the Gulf, the Caucasus, Central Asia and North Africa. See our references
APPLICATIONS
For hygiene-critical personnel entrances
Model suitability is determined by considering soil load, shift density, available space and the facility hygiene procedure together.
Meat and poultry processing
For meat and poultry plants where heavy soil on boot soles must be brushed off during the passage.
Explore the applicationDairy processing plants
For dairy entrances that want sole cleaning and hand disinfection together.
Explore the applicationFruit and vegetable processing
For mechanically removing sole soil at the entrance to washing and sorting lines.
Explore the applicationFood processing and packaging
For production entrances that need sole brushing and hand disinfection where hand washing takes place elsewhere.
Explore the applicationCONFIGURATION AND INSTALLATION
Define the facility flow before ordering
The correct layout depends on more than product dimensions. Personnel flow, approach space and facility connections are reviewed together.
Read the hygiene station maintenance guidePassage direction
DSE-B is ordered for left-to-right or right-to-left passage to match the facility flow, with a 400, 600 or 800 mm brush option.
Personnel flow
Shift headcount and entrance peaks are included in the layout review before quotation.
Placement and footprint
The 150, 170 or 190 × 100 cm footprint by brush option, the non-slip step approach and service access are planned together.
Utility connections
The position of the 380–400 V 50/60 Hz supply and the 3 bar, maximum 50°C, 7 l/min water connection is confirmed before ordering.
MAINTENANCE AND CONSUMABLES
Years of the same performance with routine care
The stainless body is wiped with a chloride-free cleaner, reservoirs are refilled before they run empty, and the sensors and turnstile mechanism are checked periodically. Frequency increases with the soil load.
Maintenance and cleaning guide| Daily | Wiping and rinsing the stainless surfaces, disinfectant and soap reservoir level check, cleaning the brush section |
|---|---|
| Weekly | Sensor and photocell cleaning, nozzle flow check, turnstile movement test, removing and washing the brushes |
| Monthly | Dosing system flush, connection and screw tightness, cable and plug check, deep surface cleaning |
| 3–6 months | General check of the lock mechanism and electronics, brush bearing and motor check, manufacturer service if needed |
TECHNICAL FAQ
Frequently asked questions about DSE-B
Technical content: Efkan Turan Yağcı
, Founder · Owner
Last technical review:
What is the DSE-B hygiene station? +
DSE-B is a sole cleaning hygiene station without a washbasin that combines sole brushing with two entry-sensor motorized roller brushes, dual-hand sensor disinfection and a three-arm electric turnstile in one AISI 304 body. It is offered with 400, 600 and 800 mm brush options.
What is included with DSE-B? +
The standard delivery covers the motorized sole-brushing system, a dual-tank, dual-sensor hand disinfectant dispenser with a 5 L canister, a three-arm electric turnstile, non-slip entry and exit steps and height-adjustable feet.
Which facility entrances is DSE-B suitable for? +
It is considered for entrances in meat and poultry, dairy, fruit and vegetable and food-processing facilities where boot-sole soil must be brushed off during the passage and hand washing takes place elsewhere. Final suitability depends on soil load, personnel flow, space and the facility procedure.
What utilities does DSE-B installation require? +
The unit requires a 380–400 V 50/60 Hz power supply and a water connection rated at 3 bar, maximum 50°C and 7 l/min. Placement and connection points for the 150, 170 or 190 × 100 × 175 cm footprint of the chosen brush length are confirmed in the pre-order technical review.
What is the difference between DSE-B, DSE-EB and DSE? +
DSE-EB adds a sensor washbasin and paper towels to the brushing, disinfection and turnstile functions of DSE-B; DSE offers only dual-hand disinfection and a turnstile without brushes. Choose DSE-EB when hand washing is required at the entrance, and DSE-B when sole cleaning and hand disinfection are enough.
What are the DSE-B warranty, delivery and service terms? +
DSE-B is delivered with a 2-year manufacturer warranty, the warranty certificate and the user manual. Spare parts and service come from our workshop in Pendik, with packaged shipping across Türkiye and to export markets.
What happens to the DSE-B turnstile if the power fails? +
When the power fails the turnstile arms are released (fail-safe) and the evacuation direction is never blocked. If the facility procedure requires locked behaviour, a fail-secure configuration is prepared on request.
Can DSE-B be integrated with card readers or a time-attendance system? +
Yes. The dry-contact input on the control system integrates with card readers, fingerprint or face recognition and time-attendance (PDKS) systems, so each completed hygiene pass is logged. The integration is planned during the pre-order technical review.
Which hand disinfectant should be used with DSE-B? +
Liquid (non-gel) alcohol-based or quaternary-ammonium industrial hand disinfectants are suitable for the spray nozzles. Gel products can block the nozzles. The contact time on the product label is taken into account when setting the passage cycle.
